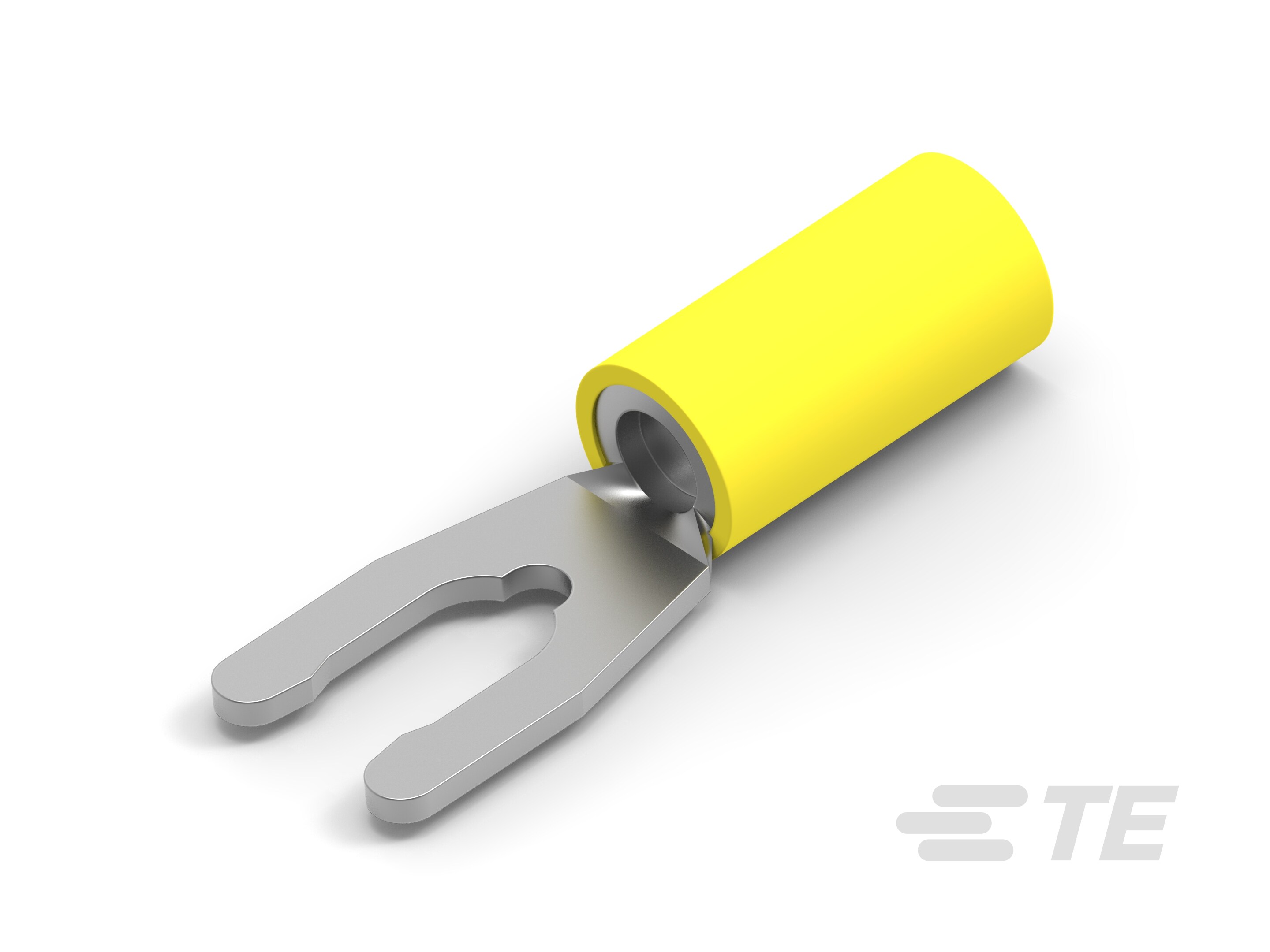

TERMINAL,PG SPR SPD 12-10 10-52475

52475

Active
TE Connectivity AMP Connectors

CONN SPADE TERM 10-12AWG #10 YEL

Find alt
TERMINAL,PG SPR SPD 12-10 10-52475

52475

Active
TE Connectivity AMP Connectors

CONN SPADE TERM 10-12AWG #10 YEL

Find alt

Description

General part information

52475

Spring Spade Terminal, 12 – 10 AWG, #10 Stud, 4.82 mm [.19 in] Stud Diameter, Closed Barrel, Straight, Tin Plating, Partially Insulated, PLASTI-GRIP

Technical Specifications

Parameters and characteristics for this part

Specification52475
ColorYellow
Contact FinishTin
Contact MaterialBrass
InsulationInsulated
Length - Overall1.219 in
Mounting TypeFree Hanging (In-Line)
Stud/Tab Size10 Stud
Terminal TypeSnap, Spring
TerminationCrimp
Width - Outer Edges0.375 in
Wire Gauge (AWG) (Max)12 AWG
Wire Gauge (AWG) (Min)10 AWG

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Sign in to see pricing

Create a free account to access distributor pricing data.

Sign up — freeLog in

CAD

3D models and CAD resources for this part
