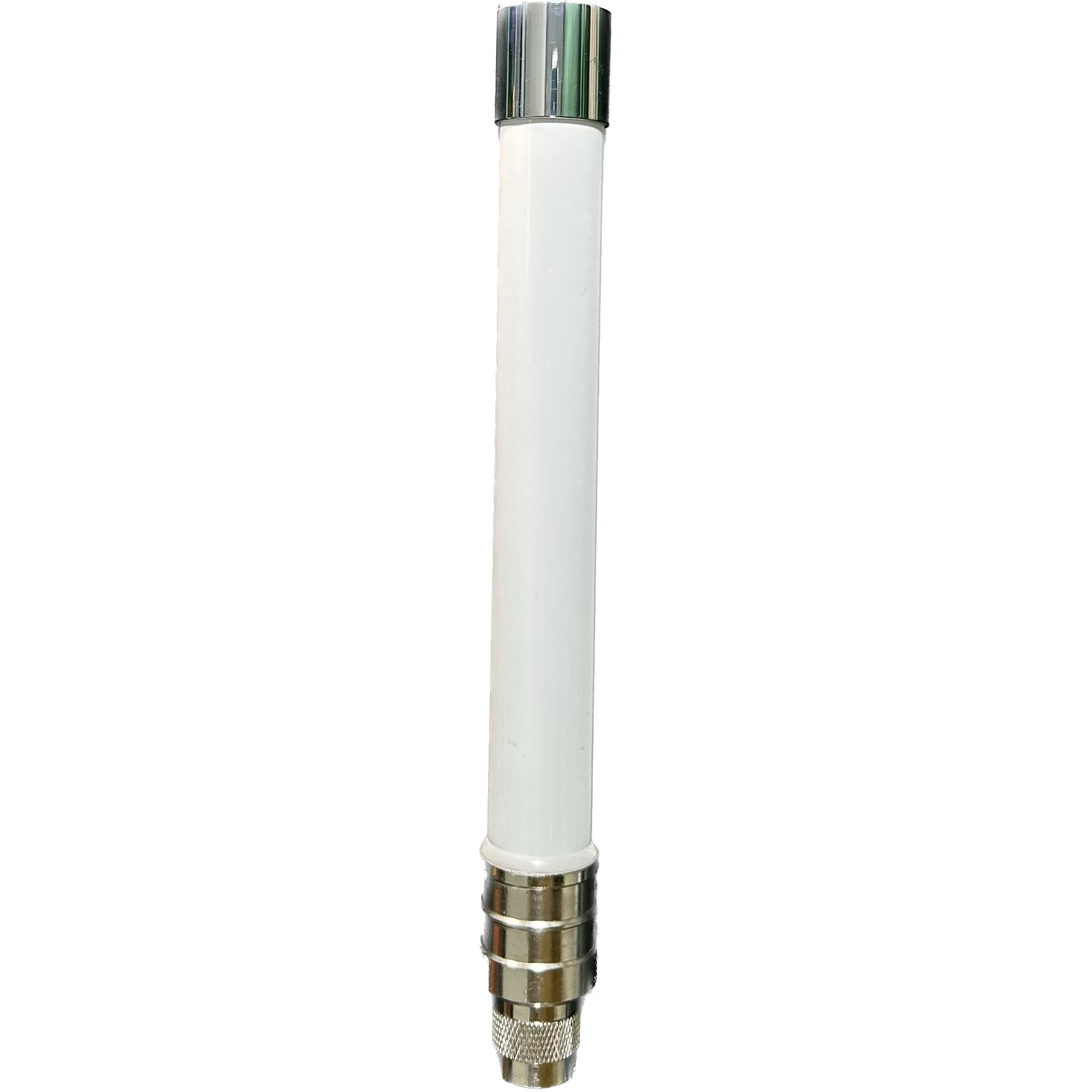

ST0626-41-302-B
ActiveMcGill Microwave Systems
IP 67 SINGLE BAND EXTERNAL RF AN
ST0626-41-302-B
ActiveMcGill Microwave Systems
IP 67 SINGLE BAND EXTERNAL RF AN
Description
General part information
ST0626-41-302-B
868MHz IoT, LoRa, LPWAN, RFID, Sigfox Module RF Antenna 863MHz ~ 873MHz 2.2dBi N Type
Technical Specifications
Parameters and characteristics for this part
| Specification | ST0626-41-302-B |
|---|---|
| Antenna Type | Module, Straight, Whip |
| Applications | RFID, LoRa, Sigfox, LPWAN, IoT |
| Frequency (Center/Band) | 868 MHz |
| Frequency Group | UHF |
| Frequency Group Maximum (UHF) | 1 GHz |
| Frequency Group Minimum (UHF) | 300 MHz |
| Frequency Range (Max) | 873 MHz |
| Frequency Range (Min) | 863 MHz |
| Gain | 2.2 dBi |
| Height (Max) | 9.472 in |
| Ingress Protection | IP67 |
| Number of Bands | 1 |
| Power - Max | 200 W |
| Return Loss | -14 dB |
| RF Family/Standard | Cellular, General ISM, Lora |
| Termination | N Type |
