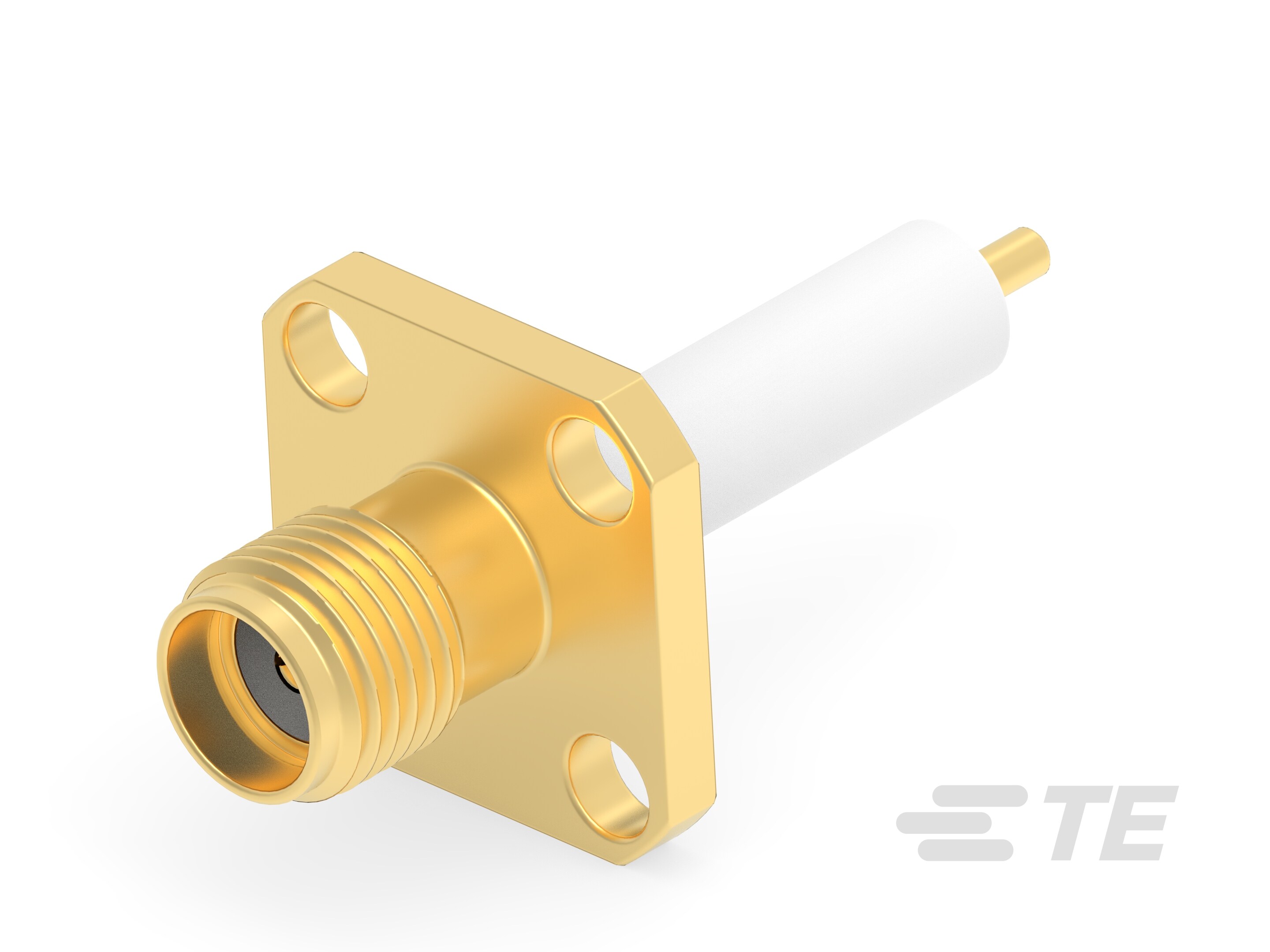

SMA,RECEPTACLE,18GHZ,STR,FLANGE-2081361-1

2081361-1

Active
TE Connectivity AMP Connectors

RF CONNECTORS / COAXIAL CONNECTORS SMA,RECEPTACLE,18GHZ,STR,FLANGE

Find alt
SMA,RECEPTACLE,18GHZ,STR,FLANGE-2081361-1

2081361-1

Active
TE Connectivity AMP Connectors

RF CONNECTORS / COAXIAL CONNECTORS SMA,RECEPTACLE,18GHZ,STR,FLANGE

Find alt

Description

General part information

2081361-1

SMA Connector, Receptacle, 50 ohm, Screw, 0 – 18 GHz, Cable-to-Board, 1 Position, Printed Circuit Board, Panel Mount, -55 – 125 °C [-67 – 257 °F]

Technical Specifications

Parameters and characteristics for this part

Specification2081361-1
Center Contact MaterialBeryllium Copper
Connector StyleSMA
Connector TypeRecepture, Female Socket
Contact TerminationSolder
Fastening TypeThreaded
Frequency - Max18 GHz
Housing ColorGold
Impedance50 Ohm
Mounting FeatureFlange
Mounting TypePanel Mount
Number of Ports1
Shield TerminationSolder

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Sign in to see pricing

Create a free account to access distributor pricing data.

Sign up — freeLog in

CAD

3D models and CAD resources for this part
