UAL5-2RF8
ActiveBourns Inc.
RES CHAS MNT 2 OHM 1% 7.5W
UAL5-2RF8
ActiveBourns Inc.
RES CHAS MNT 2 OHM 1% 7.5W
Description
General part information
UAL5-2RF8

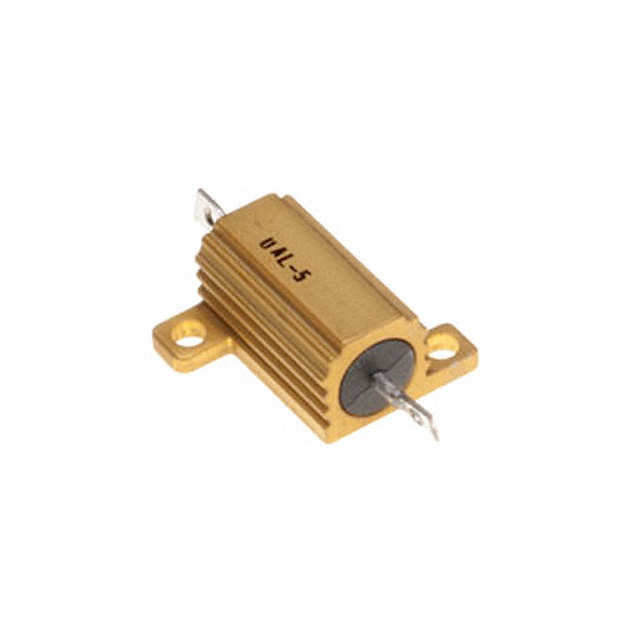

2 Ohms ±1% 7.5W Wirewound Chassis Mount Resistor
Technical Specifications
Parameters and characteristics for this part
| Specification | UAL5-2RF8 |
|---|---|
| Coating | Aluminum |
| Composition | Wirewound |
| Features | Safety, Pulse Withstanding, Current Sense, Flame Proof |
| Height - Seated (Max) | 0.335 in |
| Housing Type | Aluminum |
| Lead Style | Solder Lugs |
| Mounting Feature | Flanges |
| Operating Temperature (Max) | 275 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | Box, Axial |
| Power (Watts) | 7.5 W |
| Resistance | 2 Ohm |
| Size / Dimension Length | 0.598 in |
| Size / Dimension Width | 0.646 in |
| Temperature Coefficient | 50 ppm/°C |
| Tolerance | 1 % |
