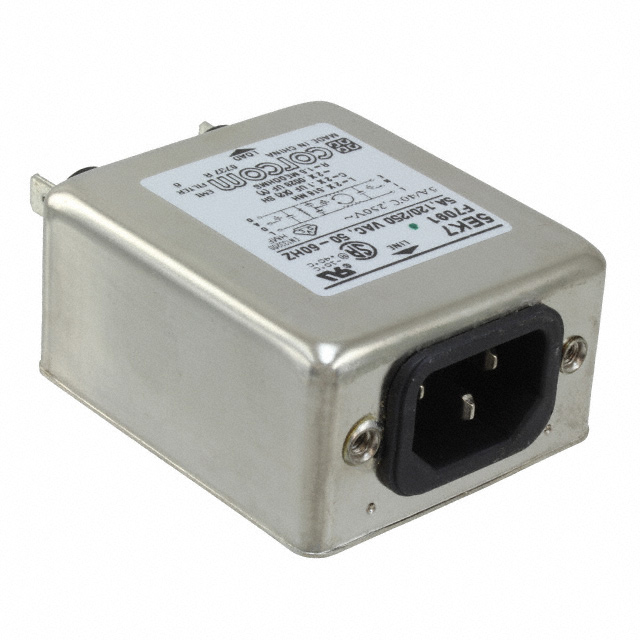

5EK7
ActiveTE Connectivity Corcom Filters
LINE FILTER 250VAC 5A CHASSIS
5EK7
ActiveTE Connectivity Corcom Filters
LINE FILTER 250VAC 5A CHASSIS
Description
General part information
5EK7
Single Phase EMC/EMI Line Filter 5 A 250V 50/60Hz Single Stage IEC 320-C14, Quick Connect
Technical Specifications
Parameters and characteristics for this part
| Specification | 5EK7 |
|---|---|
| Applications | General Purpose |
| Approval Agency | UR, CSA, VDE |
| Configuration | Single Stage |
| Current | 5 A |
| Filter Type | Single Phase |
| Frequency - Operating | 60Hz, 50Hz |
| Frequency - Operating (Max) | 60 Hz |
| Frequency - Operating (Min) | 50 Hz |
| Mounting Type | Chassis Mount |
| Operating Temperature (Max) | 40 °C |
| Operating Temperature (Min) | -10 °C |
| Termination Style | Quick Connect, IEC 320-C14 |
| Voltage - Rated AC | 250 V |
