SD121-50
ActivePasternack

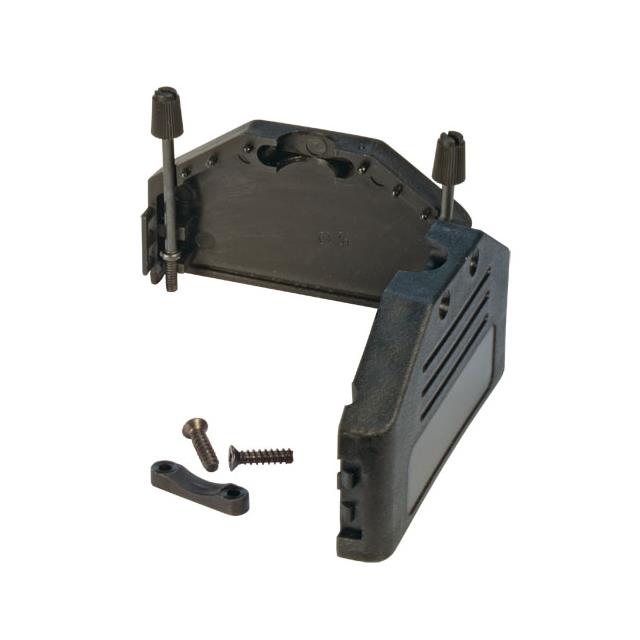

D SUB BACKSHELL, BLACK, DD, 180°, PP (POLYPROPYLENE) BODY
SD121-50
ActivePasternack
D SUB BACKSHELL, BLACK, DD, 180°, PP (POLYPROPYLENE) BODY
Description
General part information
SD121-50
50, 78 Position Hinged Backshell Connector Black 180° Unshielded
Technical Specifications
Parameters and characteristics for this part
| Specification | SD121-50 |
|---|---|
| Accessory Type | Hinged Backshell |
| Cable Exit Angle | 180 ° |
| Cable Type | Round |
| Color | Black |
| Compatible D-Sub Size | HD78pos, 50pos |
| Compatible Shell Size | D |
| Features | Mating Screws 4-40 |
| Hardware | Assembly Hardware, Cable Clamp |
| Material | Polypropylene (PP) |
| Number of Positions | 78, 50 |
| Primary Material | Plastic |
| Shielding | Unshielded |
