KRF120-12X2-40
ActiveElpress Inc.

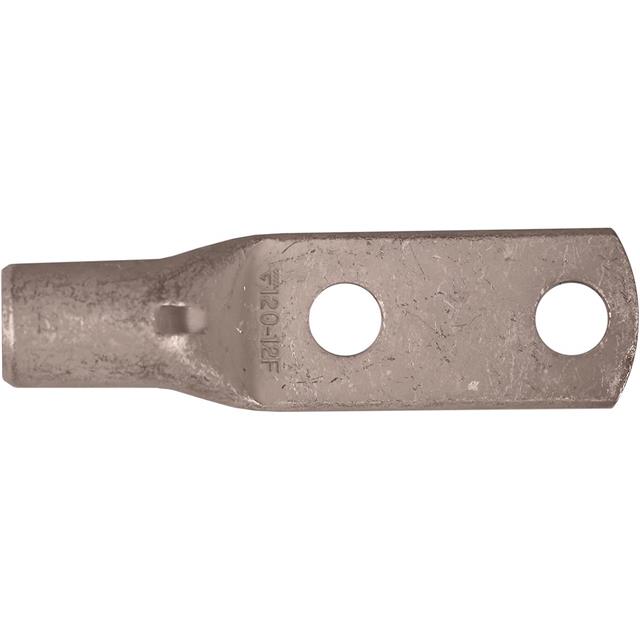

BATTERY LUG 2-HOLE 120 MM M12
KRF120-12X2-40
ActiveElpress Inc.
BATTERY LUG 2-HOLE 120 MM M12
Description
General part information
KRF120-12X2-40
Terminal Connector Rectangular Ring, Tubular 4 AWG M12 Stud
Technical Specifications
Parameters and characteristics for this part
| Specification | KRF120-12X2-40 |
|---|---|
| Contact Finish | Tin |
| Contact Material | Copper |
| Features | UL Listed |
| Insulation | Non-Insulated |
| Length - Overall | 4.449 in |
| Mounting Type | Free Hanging (In-Line) |
| Stud/Tab Size | M12 Stud, M12 |
| Tab Thickness | 0.193 in |
| Terminal Type | Ring, Tubular |
| Termination | Crimp |
| Width - Outer Edges | 1.259 in |
| Wire Gauge | 4 AWG |
