XB6AW1B1B
ActiveSCHNEIDER ELECTRIC
INDUSTRIAL PUSHBUTTON SWITCH, HARMONY XB6 SERIES, 16 MM, SPST-NO, MOMENTARY, FLUSH, WHITE
XB6AW1B1B
ActiveSCHNEIDER ELECTRIC
INDUSTRIAL PUSHBUTTON SWITCH, HARMONY XB6 SERIES, 16 MM, SPST-NO, MOMENTARY, FLUSH, WHITE
Description
General part information
XB6AW1B1B

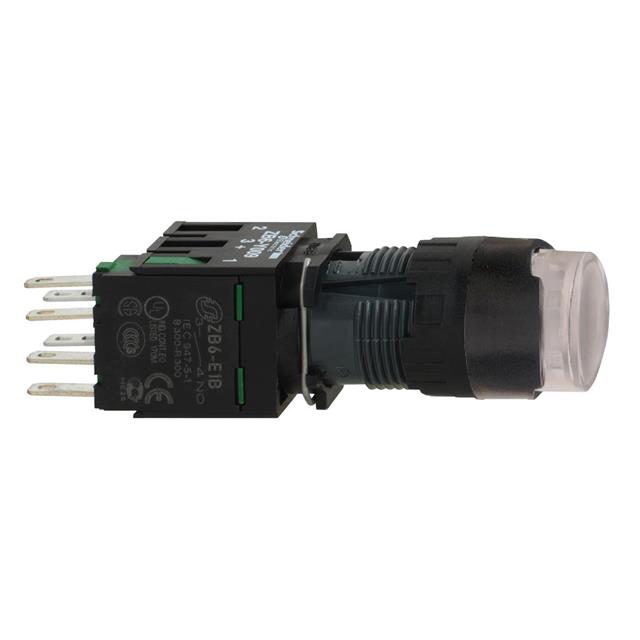

Pushbutton Switch SPST-NO Standard, Illuminated Panel Mount, Front
Technical Specifications
Parameters and characteristics for this part
| Specification | XB6AW1B1B |
|---|---|
| Actuator Type | Round, Flush, Button |
| Circuit | SPST-NO |
| Color | White |
| Color - Actuator/Cap | White |
| Current Rating | 220 mA, 3 A |
| Electrical Life (Cycles) | 1000000 Cycles |
| Illumination Type | LED |
| Illumination Voltage (Nominal) | 12 V |
| Ingress Protection Description | Dust Tight, Water Resistant |
| Ingress Protection IP Rating | IP65 |
| Mounting Type | Front, Panel Mount |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | -25 °C |
| Panel Cutout Diameter | 16 mm |
| Panel Cutout Shape | Circular |
| Quick Connect Size (0.110") | 0.11 in |
| Switch Function | On-Off |
| Termination Style | Quick Connect |
| Type | Standard, Illuminated |
| Voltage Rating - AC | 120 V |
| Voltage Rating - DC | 125 V |
