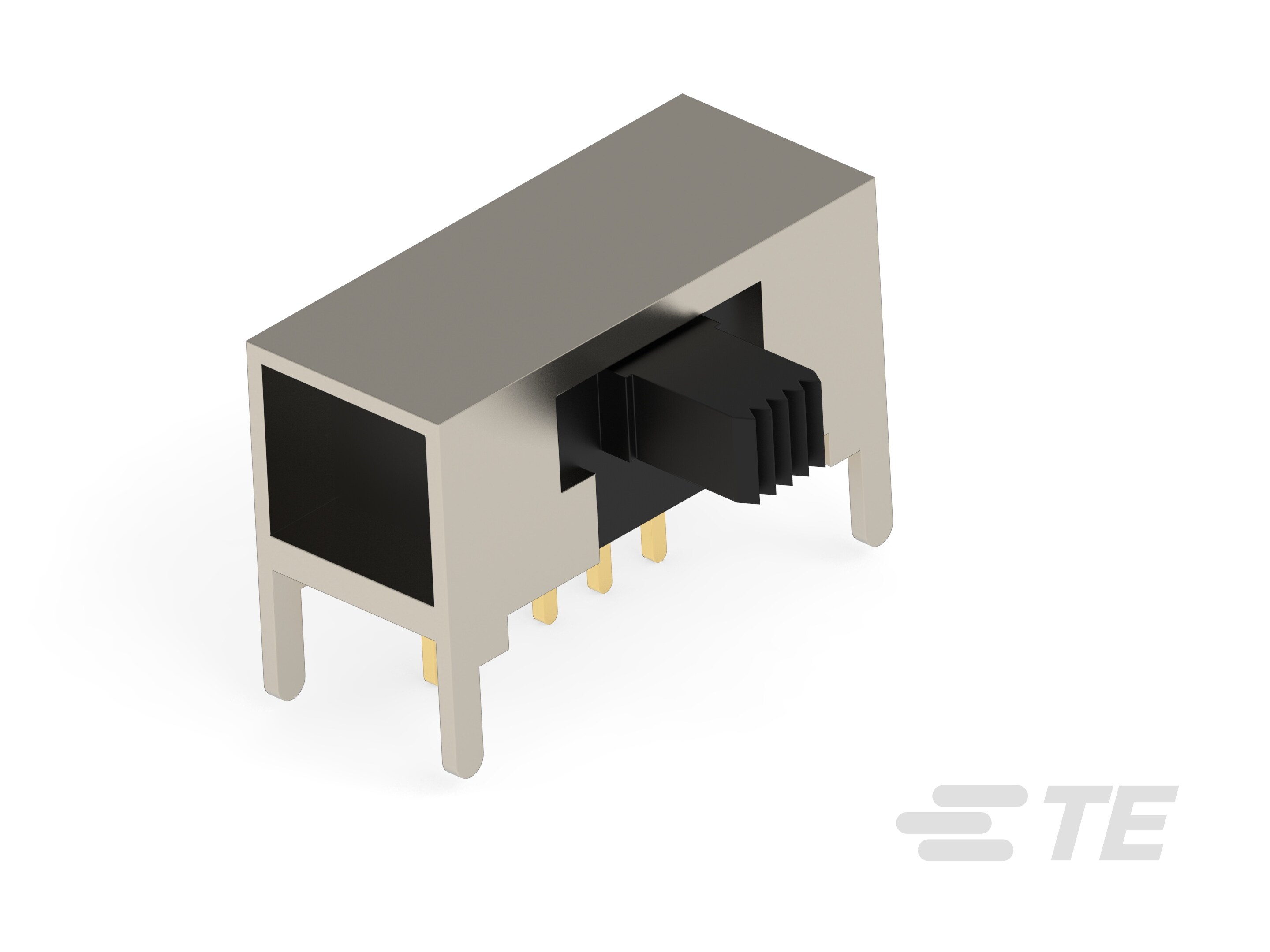

Specification	1825256-1

Actuator Length	4.5 mm
Actuator Type	Standard
Circuit	SPDT
Contact Finish	Silver
Contact Material	Copper Alloy
Contact Timing	Shorting (MBB)
Current Rating	300 mA
Features	Epoxy Sealed Terminals
Mounting Type	Through Hole, Right Angle
Operating Temperature (Max)	85 °C
Operating Temperature (Min)	-20 °C
Switch Function	On-On
Termination Style	PC Pin
Voltage Rating - AC	125 V

ALCOSWITCH MHS Series

Part	Features	Mounting Type	Actuator Length	Actuator Type	Switch Function	Circuit	Termination Style	Contact Timing	Voltage Rating - AC	Contact Finish	Current Rating	Contact Material	Operating Temperature (Max)	Operating Temperature (Min)	Mechanical Life (Cycles)	Electrical Life (Cycles)	Switch Travel	Actuator Material	Operating Force	Voltage Rating - DC
TE Connectivity AMP Connectors 1-1825289-0	Epoxy Sealed Terminals	Through Hole	10 mm	Baton	On-On-On	DP3T	PC Pin	Shorting (MBB)	125 V	Silver	300 mA	Copper Alloy	85 °C	-20 °C	15000 Cycles	15000 Cycles	2 mm	Aluminum	600 gf
TE Connectivity AMP Connectors 1825289-5	Epoxy Sealed Terminals	Through Hole	4.5 mm	Standard	On-Off-On	DPDT	PC Pin	Shorting (MBB)	125 V	Silver	300 mA	Copper Alloy	85 °C	-20 °C
TE Connectivity AMP Connectors 1825255-5	Epoxy Sealed Terminals	Through Hole	4.5 mm	Standard	On-Off-On	SPDT	PC Pin	Shorting (MBB)	125 V	Silver	300 mA	Copper Alloy	85 °C	-20 °C	15000 Cycles	15000 Cycles	2 mm	Polyoxymethylene (Acetal) (POM)	600 gf
TE Connectivity AMP Connectors 1825256-6	Epoxy Sealed Terminals	Right Angle Through Hole	4.5 mm	Standard	On-On-On	SP3T	PC Pin	Shorting (MBB)	20 V	Gold	0.4 VA	Copper Alloy	85 °C	-20 °C	15000 Cycles	15000 Cycles	2 mm	Polyoxymethylene (Acetal) (POM)	600 gf	20 V
TE Connectivity AMP Connectors 1825290-3	Epoxy Sealed Terminals	Right Angle Through Hole	4.5 mm	Standard	On-On-On	DP3T	PC Pin	Shorting (MBB)	125 V	Silver	300 mA	Copper Alloy	85 °C	-20 °C
TE Connectivity AMP Connectors 1825255-7	Epoxy Sealed Terminals	Through Hole	4.5 mm	Standard	On-On-On	SP3T	PC Pin	Shorting (MBB)	125 V	Silver	300 mA	Copper Alloy	85 °C	-20 °C
TE Connectivity AMP Connectors 1825255-8	Epoxy Sealed Terminals	Through Hole	4.5 mm	Standard	On-On-On	SP3T	PC Pin	Shorting (MBB)	20 V	Gold	0.4 VA	Copper Alloy	85 °C	-20 °C	15000 Cycles	15000 Cycles	2 mm	Polyoxymethylene (Acetal) (POM)	600 gf	20 V
TE Connectivity AMP Connectors 1825255-1	Epoxy Sealed Terminals	Through Hole	4.5 mm	Standard	On-On	SPDT	PC Pin	Non-Shorting (BBM)	125 V	Silver	300 mA	Copper Alloy	85 °C	-20 °C	15000 Cycles	15000 Cycles	4 mm	Polyoxymethylene (Acetal) (POM)	600 gf
TE Connectivity AMP Connectors 1825256-3	Epoxy Sealed Terminals	Right Angle Through Hole	4.5 mm	Standard	On-On-On	SP3T	PC Pin	Shorting (MBB)	125 V	Silver	300 mA	Copper Alloy	85 °C	-20 °C	15000 Cycles	15000 Cycles	2 mm	Polyoxymethylene (Acetal) (POM)	600 gf
TE Connectivity AMP Connectors 1825289-1	Epoxy Sealed Terminals	Through Hole	4.5 mm	Standard	On-On	DPDT	PC Pin	Shorting (MBB)	125 V	Silver	300 mA	Copper Alloy	85 °C	-20 °C
