925552-2
ActiveTE Connectivity AMP Connectors

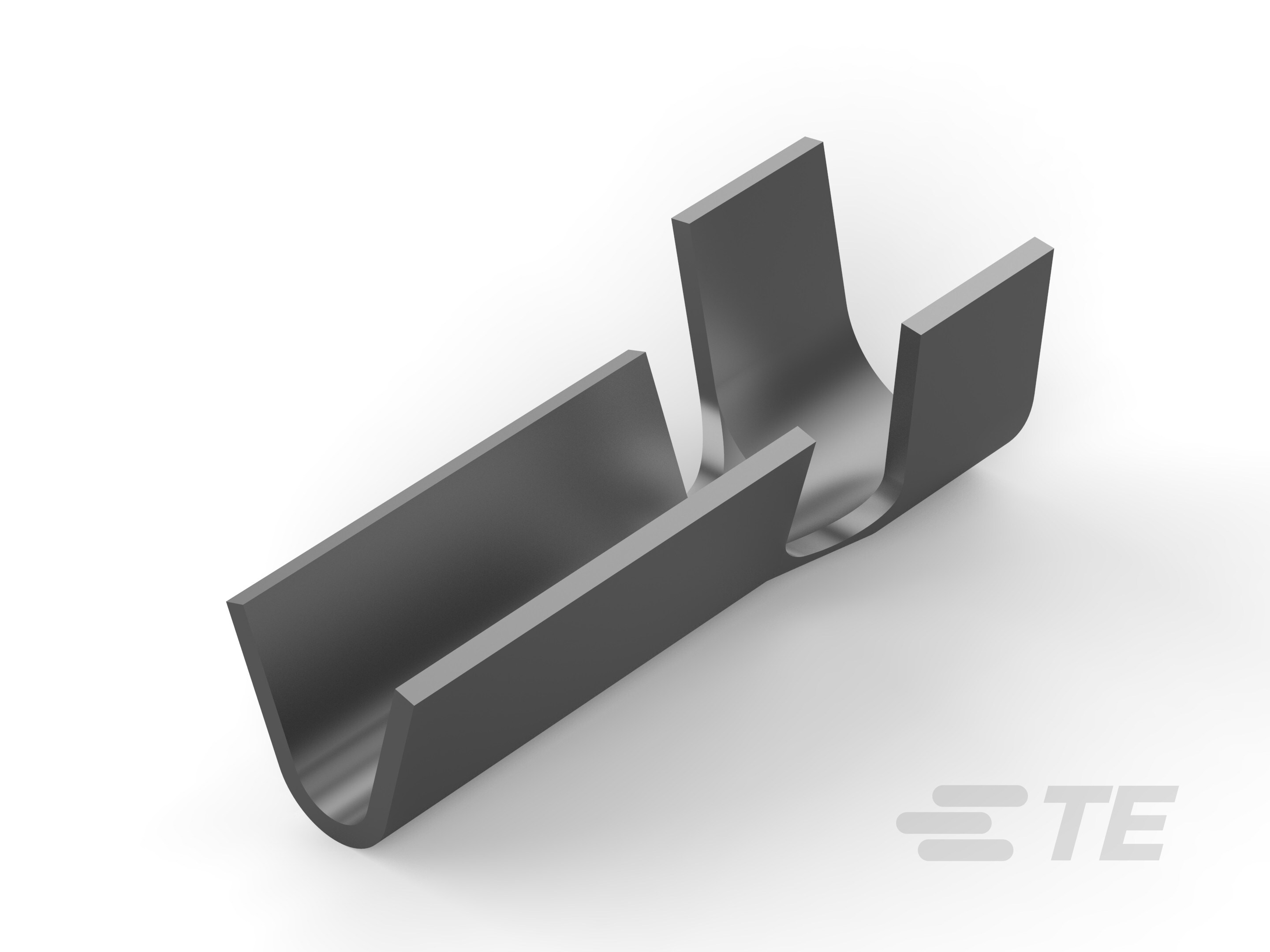

WIRE PIN 20-17 AWG .013 PTPB
925552-2
ActiveTE Connectivity AMP Connectors
WIRE PIN 20-17 AWG .013 PTPB
Description
General part information
925552-2
Pin, 2.92 mm [.115 in] Pin Diameter, 20 – 17 AWG, .5 – 1 mm² Wire, 1021 – 2048 CMA, Open Barrel, Pre-Tin Plating, 10.9 mm [.43 in] Length, Reel
Technical Specifications
Parameters and characteristics for this part
| Specification | 925552-2 |
|---|---|
| Contact Finish | Tin |
| Contact Material | Brass |
| Insulation Diameter (Max) | 0.13 in |
| Insulation Diameter (Min) | 0.071 in |
| Length - Overall | 0.453 in |
| Terminal Type | Through Board |
| Wire Gauge (AWG) (Max) | 20.5 AWG |
| Wire Gauge (AWG) (Min) | 17 AWG |
