4000-09E07K999
ObsoleteTE Connectivity AMP Connectors

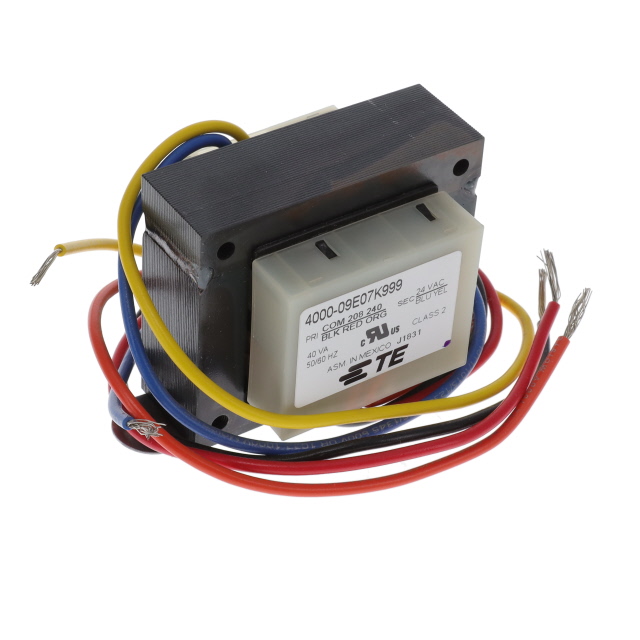

POWER TRANSFORMER 40VA 5 TERMINAL WIRE LEAD FLANGE MOUNT
4000-09E07K999
ObsoleteTE Connectivity AMP Connectors
POWER TRANSFORMER 40VA 5 TERMINAL WIRE LEAD FLANGE MOUNT
Description
General part information
4000-09E07K999
POWER TRANSFORMER 40VA 5 TERMINAL WIRE LEAD FLANGE MOUNT
Technical Specifications
Parameters and characteristics for this part
| Specification | 4000-09E07K999 |
|---|---|
| Center Tap | No |
| Height - Seated (Max) | 55.58 mm |
| Mounting Type | Chassis Mount |
| Power - Max | 40 W |
| Primary Winding(s) | Single |
| Secondary Winding(s) | Single |
| Size / Dimension Length | 90.47 mm |
| Size / Dimension Width | 55.37 mm |
| Termination Style | Wire Leads |
| Type | Laminated Core |
| Voltage - Primary | 240V, 208V |
| Voltage - Primary (Option 1) | 208 V |
| Voltage - Primary (Option 2) | 240 V |
| Voltage - Secondary (Full Load) | 24 V |
| Weight | 1.6 lbs |
