Description
General part information

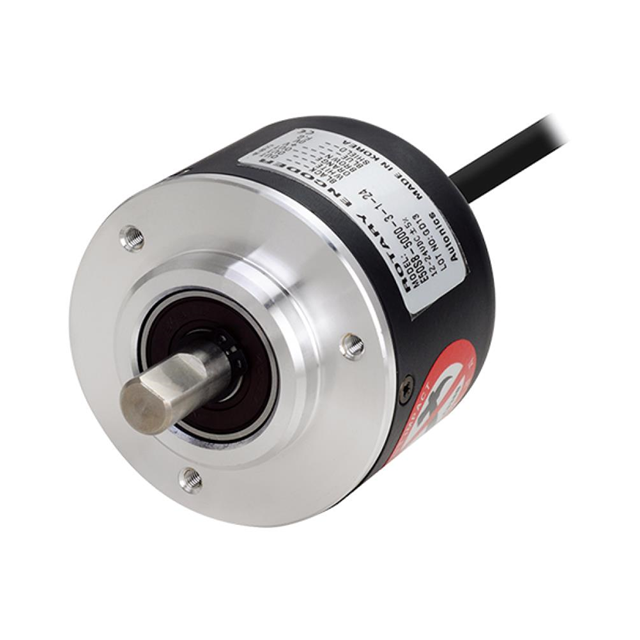

E50S8-100-3-V-24
Rotary Encoder Incremental 100 Voltage User Selectable
Technical Specifications
Parameters and characteristics for this part
| Specification | E50S8-100-3-V-24 |
|---|---|
| Actuator Diameter | 8 mm |
| Actuator Type | Flatted End |
| Built in Switch | No |
| Detent | No |
| Encoder Type | Incremental |
| Mounting Type | Chassis Mount |
| Orientation | User Selectable |
| Output Type | Voltage |
| Pulses per Revolution | 100 |
| Termination Style | Cable |
| Voltage - Supply (Maximum) | 24 VAC |
| Voltage - Supply (Minimum) | 12 VDC |
