Description
General part information

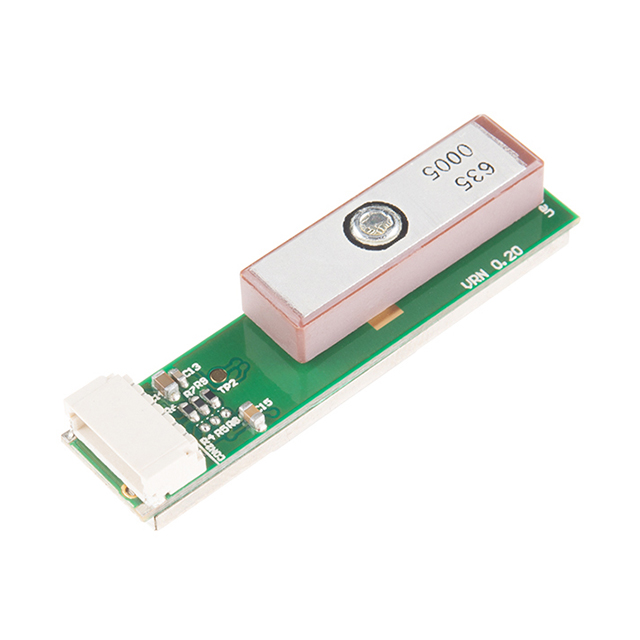

GPS-13670
- RF Receiver GPS 1.575GHz -162dBm On-Board, Patch Module
Technical Specifications
Parameters and characteristics for this part
| Specification | GPS-13670 |
|---|---|
| Antenna Connector | Patch, On-Board |
| Applications | General Purpose |
| Current - Receiving | 37 mA |
| Data Interface | UART |
| Frequency | 1.575 GHz |
| Modulation or Protocol | GPS |
| Mounting Type | User Defined |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | Module |
| Package Name | Module |
| Sensitivity | -162 dBm |
| Voltage - Supply (Maximum) | 5.5 V |
| Voltage - Supply (Minimum) | 3.1 V |
