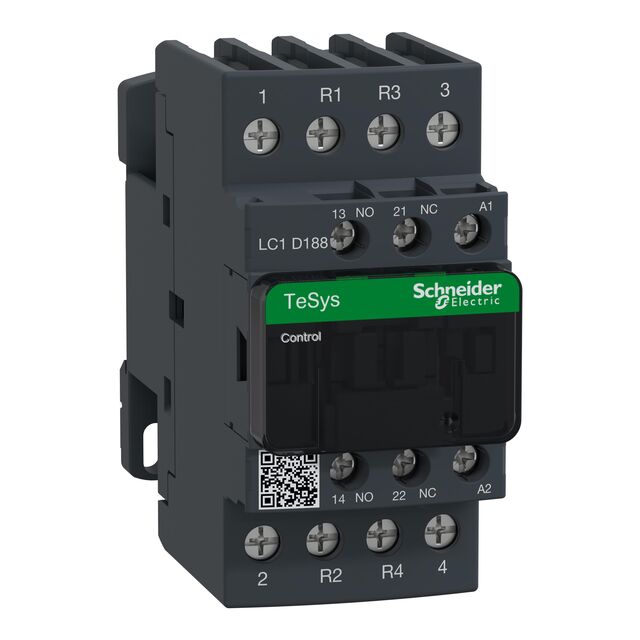

LC1D188G7
ActiveSCHNEIDER ELECTRIC
CONTACTOR 600VAC 18AMP IEC OPTIONS ROHS COMPLIANT: YES
LC1D188G7
ActiveSCHNEIDER ELECTRIC
CONTACTOR 600VAC 18AMP IEC OPTIONS ROHS COMPLIANT: YES
Description
General part information
LC1D188G7
CONTACTOR 600VAC 18AMP IEC OPTIONS ROHS COMPLIANT: YES
Technical Specifications
Parameters and characteristics for this part
| Specification | LC1D188G7 |
|---|---|
| Coil Voltage | 120 V |
| Contact Form | B, PST-2NO/2NC, Form, A, 2 |
| Contact Rating (Current) | 32 A |
| Mounting Type | Chassis Mount, DIN Rail |
| Must Operate Voltage | 102 VAC |
| Operate Time | 22 ms |
| Operating Temperature (Max) | 60 °C |
| Operating Temperature (Min) | -40 °C |
| Pin Count | 4 |
| Release Time | 19 ms |
| Switching Voltage AC (Max) | 690 VAC |
| Termination Style | Screw Terminal |
