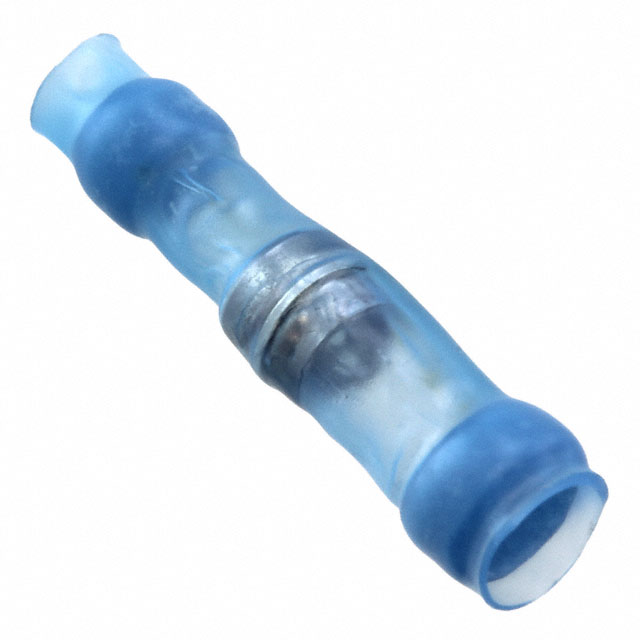

SO63-1-00

Active

TE Connectivity Raychem Cable Protection

SLDR SLV WIRE-WIRE 0.075/0.105"

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

SO63-1-00

Active

TE Connectivity Raychem Cable Protection

SLDR SLV WIRE-WIRE 0.075/0.105"

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	SO63-1-00

Color	Transparent - Blue
Diameter	2.67 mm, 1.91 mm
Diameter	0.075 in, 0.105 in
Features	Immersion Resistant
Length	16.51 mm
Length	0.65 "
Type	Wire to Wire

SO63 Series

Part	Diameter	Diameter	Features	Type	Length	Length	Color	Diameter
TE Connectivity Raychem Cable Protection SO63-3-9036-18CS2677	4.32 mm 5.08 mm	0.17 in 0.2 in	Immersion Resistant Pre-Installed Lead Wire	Wire to Wire	16.51 mm	0.65 "	Transparent - Blue
TE Connectivity Raychem Cable Protection SO63-4-W2-24-00-100CS2870	5.97 mm 6.48 mm		Environment Resistant Pre-Installed Lead Wire	Wire to Wire	19.05 mm	0.75 in	Transparent - Blue	0.235 in 0.255 in
TE Connectivity Raychem Cable Protection SO63-3-01-100CS2812	4.32 mm 5.08 mm	0.17 in 0.2 in	Immersion Resistant Pre-Installed Braid	Wire to Wire	16.51 mm	0.65 "	Transparent - Blue
TE Connectivity Raychem Cable Protection SO63-1-55-22-0	0.075 in 0.105 in	1.91 mm 2.67 mm	Immersion Resistant Pre-Installed Lead Wire	Wire to Wire	16.51 mm	0.65 "	Transparent - Blue
TE Connectivity Raychem Cable Protection SO63-3-55-24-0CS2396	4.32 mm 5.08 mm	0.17 in 0.2 in	Immersion Resistant Pre-Installed Lead Wire	Wire to Wire	16.51 mm	0.65 "	Transparent - Blue
TE Connectivity Raychem Cable Protection SO63-3-9036-18	4.32 mm 5.08 mm	0.17 in 0.2 in	Immersion Resistant Pre-Installed Lead Wire	Wire to Wire	16.51 mm	0.65 "	Transparent - Blue
TE Connectivity Raychem Cable Protection SO63-5-55-20-5	6.99 mm 7.62 mm	0.275 " 0.3 "	Immersion Resistant Pre-Installed Lead Wire	Wire to Wire	19.05 mm	0.75 in	Transparent - Blue
TE Connectivity Raychem Cable Protection SO63-1-W2-24-00-100CS2870	0.075 in 0.105 in	1.91 mm 2.67 mm	Environment Resistant Pre-Installed Lead Wire	Wire to Wire	16.51 mm	0.65 "	Transparent - Blue
TE Connectivity Raychem Cable Protection SO63-3-9036-20CS2677	4.32 mm 5.08 mm	0.17 in 0.2 in	Immersion Resistant Pre-Installed Lead Wire	Wire to Wire	16.51 mm	0.65 "	Transparent - Blue
TE Connectivity Raychem Cable Protection SO63-1-00	0.075 in 0.105 in	1.91 mm 2.67 mm	Immersion Resistant	Wire to Wire	16.51 mm	0.65 "	Transparent - Blue

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 1.99
		10	$ 1.80
		25	$ 1.71
		50	$ 1.67
		100	$ 1.59
		250	$ 1.40

Description

General part information

SO63 Series

Wire to Wire Solder Sleeve Transparent - Blue 0.075" (1.91mm), 0.105" (2.67mm)
