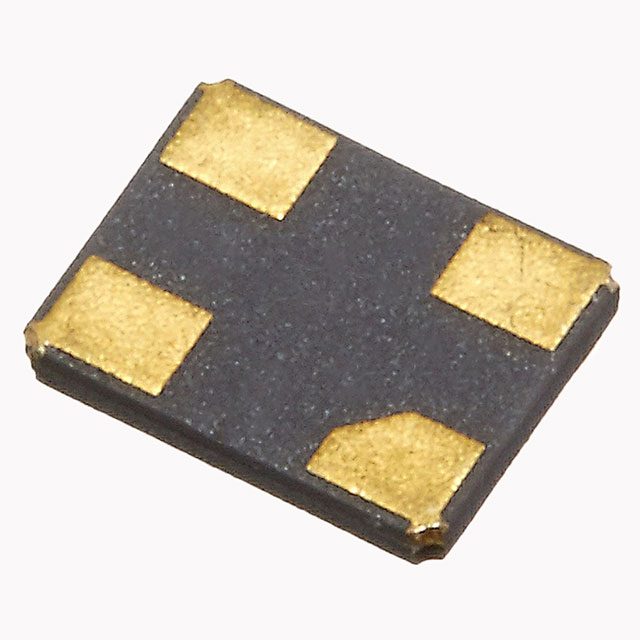

R2520-26.000-9-F-1010-TR
ActiveRaltron Electronics
CRYSTAL 26.0000MHZ 9PF SMD
R2520-26.000-9-F-1010-TR
ActiveRaltron Electronics
CRYSTAL 26.0000MHZ 9PF SMD
Description
General part information
R2520-26.000-9-F-1010-TR
26 MHz ±10ppm Crystal 9pF 100 Ohms 4-SMD, No Lead
Technical Specifications
Parameters and characteristics for this part
| Specification | R2520-26.000-9-F-1010-TR |
|---|---|
| ESR (Equivalent Series Resistance) | 100 Ohm |
| Frequency | 26 MHz |
| Frequency Stability | 10 ppm |
| Frequency Tolerance | 10 ppm |
| Height - Seated (Max) | 0.026 in |
| Load Capacitance | 9 pF |
| Mounting Type | Surface Mount |
| Operating Mode | Fundamental |
| Operating Temperature (Max) | 60 °C |
| Operating Temperature (Min) | -10 °C |
| Package / Case | 4-SMD, No Lead |
| Package Length | 2.5 mm |
| Package Name | 4-SMD |
| Package Width | 2 mm |
| Size / Dimension Length | 0.098 in |
| Size / Dimension Width | 0.079 in |
| Type | MHz Crystal |
