XU9M18MA230W
ObsoleteSCHNEIDER ELECTRIC
PHOTOELECTRIC SENSORS XU, XU9, P
XU9M18MA230W
ObsoleteSCHNEIDER ELECTRIC
PHOTOELECTRIC SENSORS XU, XU9, P
Description
General part information
XU9M18MA230W

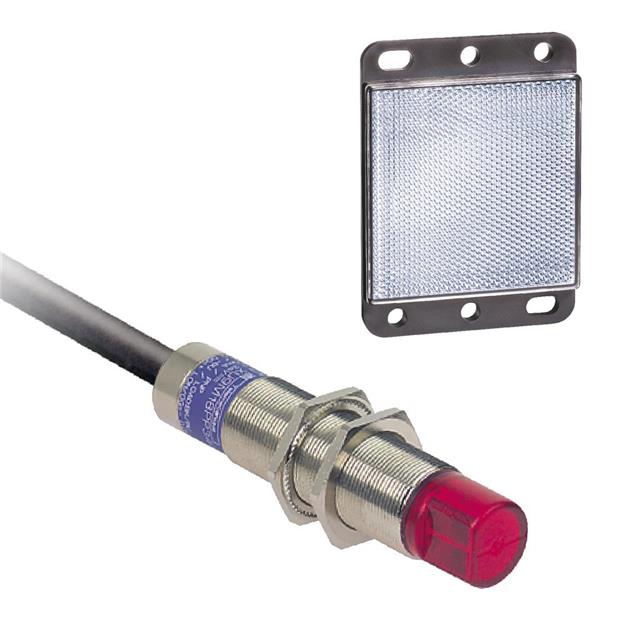

Reflective, Polarized Optical Sensor 78.740" (2m) SCR, NO
Technical Specifications
Parameters and characteristics for this part
| Specification | XU9M18MA230W |
|---|---|
| Adjustment Type | Adjustable |
| Cable Length | 78.74 in |
| Connection Method | Cable |
| Ingress Protection | IP67 |
| Light Source | Red LED, Yellow LED |
| Operating Temperature (Max) | 55 °C |
| Operating Temperature (Min) | -25 °C |
| Output Configuration | NO, SCR |
| Response Time | 20 ms |
| Sensing Distance | 78.74 " |
| Sensing Method | Polarized, Reflective |
| Voltage - Supply (Maximum) | 240 VAC |
| Voltage - Supply (Minimum) | 24 VAC |
