Description
General part information
200467

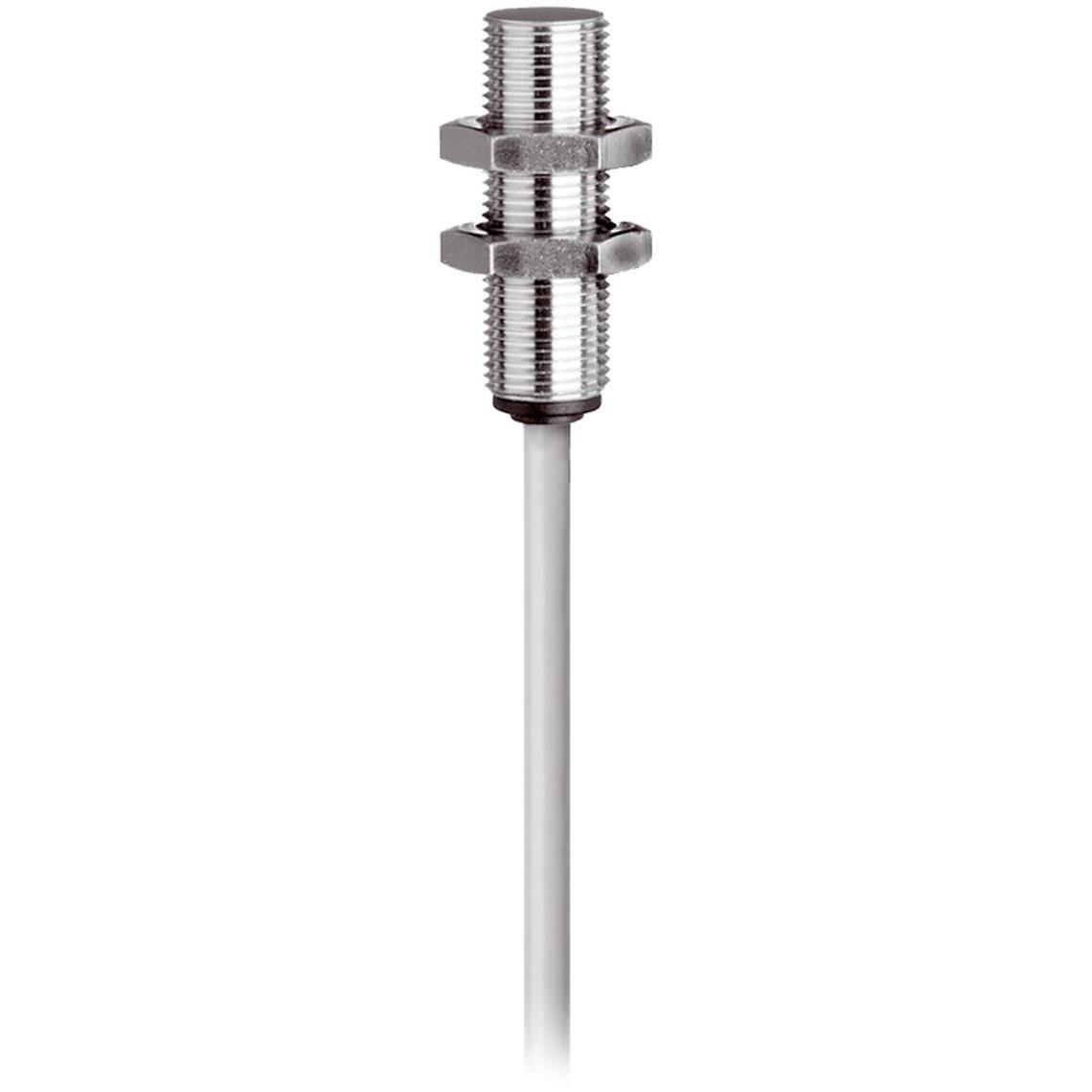

SENSOR PROX INDUCTIVE 0-6MM CYL
Technical Specifications
Parameters and characteristics for this part
| Specification | 200467 |
|---|---|
| Indicator | No Indicator |
| Ingress Protection | IP67 |
| Material - Body | Nickel-Plated Brass, CuZn |
| Operating Temperature (Max) | 70 °C, 70 °C |
| Operating Temperature (Min) | -25 °C, -25 °C |
| Output Type | Analog Current, Analog Voltage |
| Package / Case | Threaded - M12, Cylinder |
| Response Frequency | 1 kHz |
| Sensing Distance Maximum | 0.236 " |
| Sensing Distance Minimum | 0 cm |
| Sensor Type | Inductive |
| Shielding | Unshielded |
| Termination Style | Cable |
| Voltage - Supply (Maximum) | 30 VDC |
| Voltage - Supply (Minimum) | 15 VDC |
