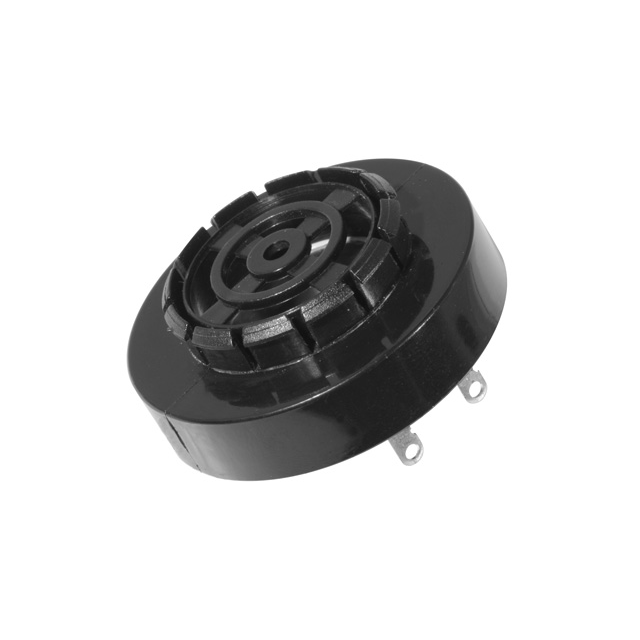

Specification	IP422924-1

Current - Supply	15 mA
Driver Circuitry	Indicator, Internally Driven
Frequency	2.9 kHz
Height - Seated (Max)	0.807 in
Input Type	DC
Mounting Type	Panel Mount
Operating Mode	Single Tone
Operating Temperature (Max)	60 °C
Operating Temperature (Min)	-20 °C
Port Location	Top
Size / Dimension Diameter	1.654 in
Sound Pressure Level (SPL)	95 dB
Technology	Piezo
Termination	Solder Tabs
Voltage - Rated	24 VAC
Voltage Range (Max)	28 V
Voltage Range (Min)	1 V
