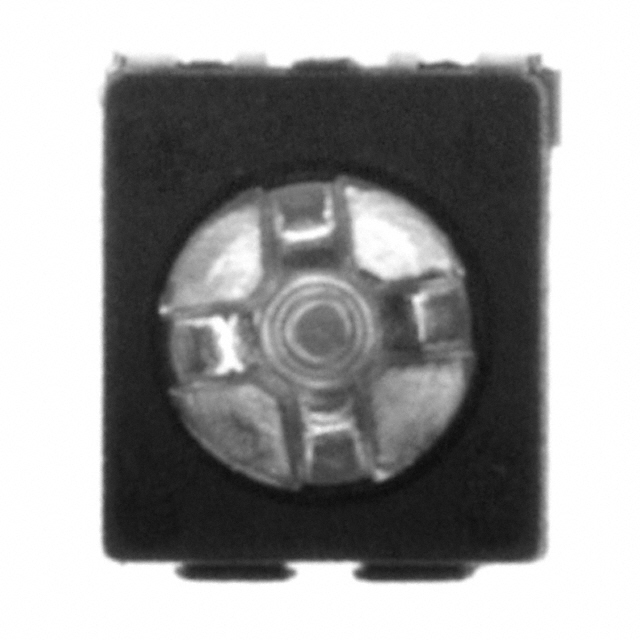

EVN-5CSX50B15
ObsoletePanasonic Electronic Components
TRIMMER 100KOHM 0.05W J LEAD TOP
EVN-5CSX50B15
ObsoletePanasonic Electronic Components
TRIMMER 100KOHM 0.05W J LEAD TOP
Description
General part information
EVN-5CSX50B15
100 kOhms 0.05W, 1/20W J Lead Surface Mount Trimmer Potentiometer Carbon 1.0 Turn Top Adjustment
Technical Specifications
Parameters and characteristics for this part
| Specification | EVN-5CSX50B15 |
|---|---|
| Adjustment Type | Top Adjustment |
| Mounting Type | Surface Mount |
| Number of Turns | 1 turns |
| Power (Watts) | 50 mW |
| Power (Watts) Options | 1/20W |
| Resistance | 100 kOhm |
| Resistive Material | Carbon |
| Size / Dimension Length | 0.142 in |
| Size / Dimension Shape | Rectangular |
| Size / Dimension Width | 0.122 in |
| Temperature Coefficient | 500 ppm/°C |
| Termination Style | J Lead |
| Tolerance | 30 % |
