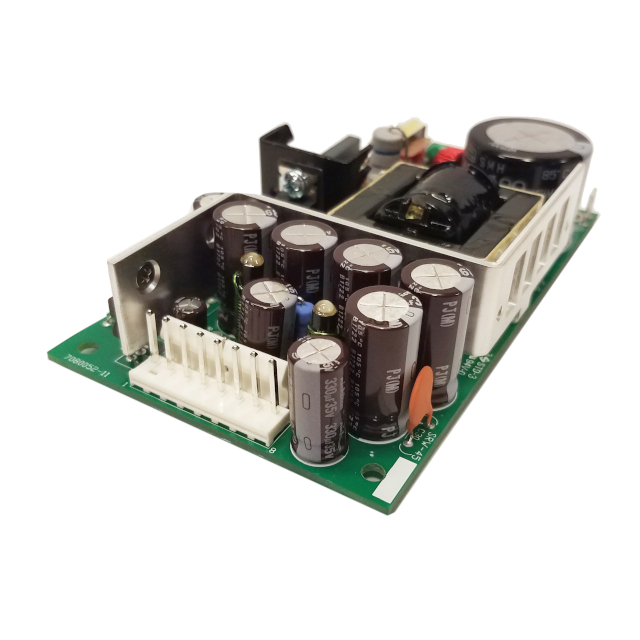

1010103
ActiveIntegrated Power Designs
AC/DC CONVERTER 5V 24V 45W
1010103
ActiveIntegrated Power Designs
AC/DC CONVERTER 5V 24V 45W
Description
General part information
1010103
Open Frame AC DC Converters 2 Output 5V 24V 100 ~ 240 VAC Input
Technical Specifications
Parameters and characteristics for this part
| Specification | 1010103 |
|---|---|
| Applications | Industrial, ITE (Commercial) |
| Approval Agency | CE, UKCA, TUV |
| Current - Output 1 | 5 A |
| Current - Output 2 | 1.5 A |
| Efficiency | 70 % |
| Features | Universal Input, Adjustable Output |
| Mounting Type | Chassis Mount |
| Number of Outputs | 2 |
| Operating Temperature (Max) | 50 °C |
| Operating Temperature (Min) | 0 °C |
| Power (Watts) | 45 W |
| Size / Dimension Height | 1.25 in |
| Size / Dimension Length | 5 in |
| Size / Dimension Width | 3 in |
| Standard Number | 62368-1 |
| Type | Open Frame |
| Voltage - Input (AC) Maximum | 240 VAC |
| Voltage - Input (AC) Minimum | 100 VAC |
| Voltage - Output 1 | 5 V |
| Voltage - Output 2 | 24 V |
