Description
General part information
4793

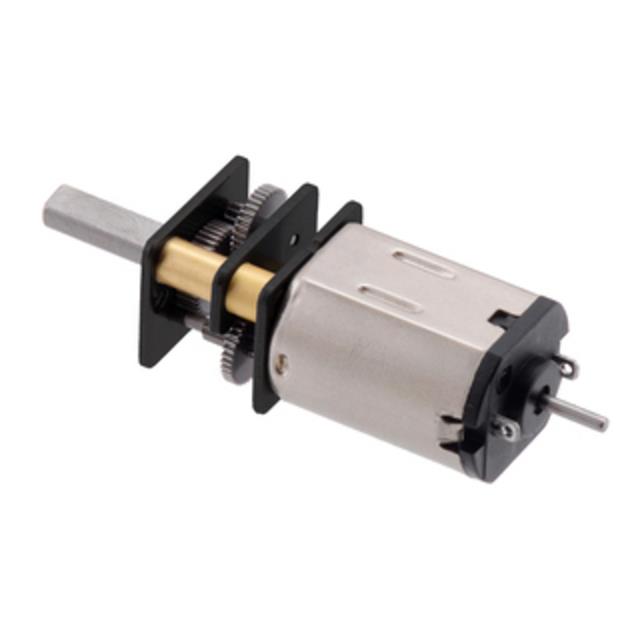

Brushed DC Motor Gearmotor 57 RPM 0.53W 6V
Technical Specifications
Parameters and characteristics for this part
| Specification | 4793 |
|---|---|
| Diameter - Shaft | 0.118 in |
| Features | Extended Motor Shaft, Encoder Compatible |
| Function | Gearmotor |
| Gear Reduction Ratio | 379.17 |
| Length - Shaft and Bearing | 0.354 in |
| Motor Type | Brushed |
| Power - Rated | 0.53 W |
| RPM | 57 RPM |
| Size / Dimension Length | 0.394 in |
| Size / Dimension Shape | Rectangular |
| Size / Dimension Width | 0.472 in |
| Termination Style | Solder Tab |
| Type | DC Motor |
| Voltage - Rated | 6 VDC |
| Weight | 0.022 lb |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
