104480-8
ActiveTE Connectivity AMP Connectors

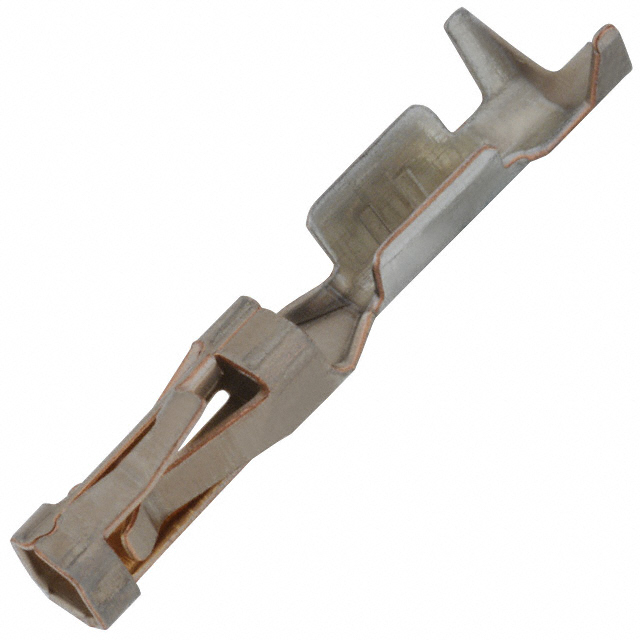

CONN SOCKET 22-26AWG CRIMP GOLD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
104480-8
ActiveTE Connectivity AMP Connectors
CONN SOCKET 22-26AWG CRIMP GOLD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 104480-8 | 104480 Series |
|---|---|---|
| Contact Finish | Gold | Tin-Lead, Gold, Tin |
| Contact Finish Thickness | 15 µin | 15 - 100 µin |
| Contact Finish Thickness | 0.38 µm | 0.38 - 2.54 µm |
| Contact Termination | Crimp | Crimp |
| Pin or Socket | Socket | Socket |
| Wire Gauge [Max] | 26 AWG | 26 AWG |
| Wire Gauge [Min] | 22 AWG | 22 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 0.37 | |
| 10 | $ 0.34 | |||
| 25 | $ 0.33 | |||
| 50 | $ 0.33 | |||
| 100 | $ 0.28 | |||
| 250 | $ 0.25 | |||
| 500 | $ 0.24 | |||
| 1000 | $ 0.21 | |||
| 3000 | $ 0.21 | |||
104480 Series
CONN SOCKET 22-26AWG CRIMP TIN
| Part | Contact Finish Thickness | Contact Finish Thickness | Wire Gauge [Min] | Wire Gauge [Max] | Contact Termination | Pin or Socket | Contact Finish |
|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 104480-2 | 2.54 µm | 100 µin | 22 AWG | 26 AWG | Crimp | Socket | Tin-Lead |
TE Connectivity AMP Connectors 104480-7 | 2.54 µm | 100 µin | 22 AWG | 26 AWG | Crimp | Socket | Tin-Lead |
TE Connectivity AMP Connectors 104480-3 | 0.38 µm | 15 µin | 22 AWG | 26 AWG | Crimp | Socket | Gold |
TE Connectivity AMP Connectors 1-104480-4 | 2.54 µm | 100 µin | 22 AWG | 26 AWG | Crimp | Socket | Tin |
TE Connectivity AMP Connectors 1-104480-5 | 0.38 µm | 15 µin | 22 AWG | 26 AWG | Crimp | Socket | Gold |
TE Connectivity AMP Connectors 104480-8 | 0.38 µm | 15 µin | 22 AWG | 26 AWG | Crimp | Socket | Gold |
Description
General part information
104480 Series
Socket Contact Gold 22-26 AWG Crimp
