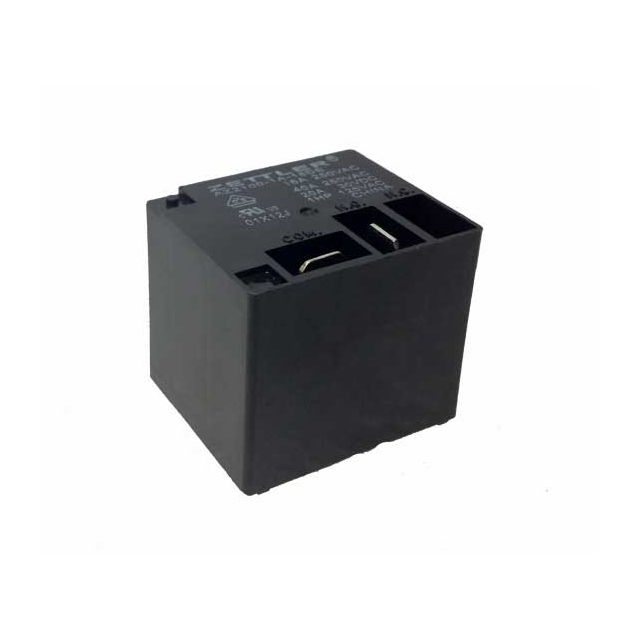

AZ2100-1C-24DEF

Active

American Zettler

RELAY GEN PURPOSE SPDT 30A 24V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

AZ2100-1C-24DEF

Active

American Zettler

RELAY GEN PURPOSE SPDT 30A 24V

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 1.70
		10	$ 1.60
		25	$ 1.42
		40	$ 1.35
		80	$ 1.28
		240	$ 1.25

Description

General part information

AZ2100-1C Series

General Purpose Relay SPDT (1 Form C) 24VDC Coil Through Hole

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	AZ2100-1C-24DEF	AZ2100-1C Series

Approval Agency	cURus, VDE	cURus, VDE
Coil Current	36.4 mA	8.2 - 185.2 mA
Coil Insulation	Class F	Class B, Class F
Coil Resistance	660 Ohms	5.5 - 2560 Ohms
Coil Type	Non Latching	Non Latching
Coil Voltage	24 VDC	5 - 110 VDC
Contact Form	SPDT (1 Form C)	SPDT (1 Form C)
Contact Material	Silver Cadmium Oxide (AgCdO)	Silver Cadmium Oxide (AgCdO), Silver Tin Oxide (AgSnO)
Contact Rating (Current)	40 A	40 A
Load - Max Switching	1200 W, 12000 VA	1200 - 12000 W
Mounting Type	Through Hole	Through Hole
Must Operate Voltage	18 VDC	3.75 - 82.5 VDC
Must Release Voltage	2.4 VDC	0.5 - 11 VDC
Operate Time	15 ms	15 ms
Operating Temperature [Max]	85 °C	85 - 105 °C
Operating Temperature [Min]	-55 °C	-55 °C
Relay Type	General Purpose	General Purpose
Release Time	10 ms	10 ms
Seal Rating	Sealed - Fully	Sealed - Fully
Switching Voltage	277 VAC, 30 VDC	30 - 277 VAC
Switching Voltage	-	30 - 300 VAC
Termination Style	PC Pin, Quick Connect	PC Pin, Quick Connect
Termination Style	0.25 in	0.25 in

AZ2100-1C Series

RELAY GEN PURPOSE SPDT 40A 18V

Part	Approval Agency	Coil Current	Contact Rating (Current)	Switching Voltage [Max]	Coil Type	Operate Time	Coil Resistance	Operating Temperature [Max]	Operating Temperature [Min]	Seal Rating	Mounting Type	Must Release Voltage	Coil Voltage	Release Time	Coil Insulation	Must Operate Voltage	Termination Style	Termination Style	Load - Max Switching	Contact Form	Contact Material	Relay Type	Switching Voltage
American Zettler AZ2100-1C-18DE	cURus, VDE	47.4 mA	40 A	30 VDC, 300 VAC	Non Latching	15 ms	380 Ohms	85 °C	-55 °C	Sealed - Fully	Through Hole	1.8 VDC	18 VDC	10 ms	Class B	13.5 VDC	PC Pin, Quick Connect	0.25 in	1200 W, 12000 VA	SPDT (1 Form C)	Silver Cadmium Oxide (AgCdO)	General Purpose
American Zettler AZ2100-1C-6D	cURus, VDE	150 mA	40 A	30 VDC, 300 VAC	Non Latching	15 ms	40 Ohms	85 °C	-55 °C		Through Hole	0.6 VDC		10 ms	Class B	4.5 VDC	PC Pin, Quick Connect	0.25 in	1200 W, 12000 VA	SPDT (1 Form C)	Silver Cadmium Oxide (AgCdO)	General Purpose
American Zettler AZ2100-1C-5DE	cURus, VDE	185.2 mA	40 A	30 VDC, 300 VAC	Non Latching	15 ms	27 Ohms	85 °C	-55 °C	Sealed - Fully	Through Hole	0.5 VDC	5 VDC	10 ms	Class B	3.75 VDC	PC Pin, Quick Connect	0.25 in	1200 W, 12000 VA	SPDT (1 Form C)	Silver Cadmium Oxide (AgCdO)	General Purpose
American Zettler AZ2100-1C-110D	cURus, VDE	8.2 mA	40 A	30 VDC, 300 VAC	Non Latching	15 ms	13.45 kOhms	85 °C	-55 °C		Through Hole	11 VDC	110 VDC	10 ms	Class B	82.5 VDC	PC Pin, Quick Connect	0.25 in	1200 W, 12000 VA	SPDT (1 Form C)	Silver Cadmium Oxide (AgCdO)	General Purpose
American Zettler AZ2100-1C-12DEF	cURus, VDE	77.4 mA	40 A		Non Latching	15 ms	155 Ohms	85 °C	-55 °C	Sealed - Fully	Through Hole	1.2 VDC	12 VDC	10 ms	Class F	9 VDC	PC Pin, Quick Connect	0.25 in	1200 W, 12000 VA	SPDT (1 Form C)	Silver Cadmium Oxide (AgCdO)	General Purpose	30 VDC, 277 VAC
American Zettler AZ2100-1CE-24DE	cURus, VDE	36.4 mA	40 A	30 VDC, 300 VAC	Non Latching	15 ms	660 Ohms	85 °C	-55 °C	Sealed - Fully	Through Hole	2.4 VDC	24 VDC	10 ms	Class B	18 VDC	PC Pin, Quick Connect	0.25 in	1200 W, 12000 VA	SPDT (1 Form C)	Silver Tin Oxide (AgSnO)	General Purpose
American Zettler AZ2100-1C-24DEF	cURus, VDE	36.4 mA	40 A		Non Latching	15 ms	660 Ohms	85 °C	-55 °C	Sealed - Fully	Through Hole	2.4 VDC	24 VDC	10 ms	Class F	18 VDC	PC Pin, Quick Connect	0.25 in	1200 W, 12000 VA	SPDT (1 Form C)	Silver Cadmium Oxide (AgCdO)	General Purpose	30 VDC, 277 VAC
American Zettler AZ2100-1C-48D	cURus, VDE	18.8 mA	40 A	30 VDC, 300 VAC	Non Latching	15 ms	2560 Ohms	85 °C	-55 °C		Through Hole	4.8 VDC	48 VDC	10 ms	Class B	36 VDC	PC Pin, Quick Connect	0.25 in	1200 W, 12000 VA	SPDT (1 Form C)	Silver Cadmium Oxide (AgCdO)	General Purpose
American Zettler AZ2100-1C-70D	cURus, VDE	12.7 mA	40 A	30 VDC, 300 VAC	Non Latching	15 ms	5.5 kOhms	85 °C	-55 °C		Through Hole	7 VDC	70 VDC	10 ms	Class B	52.5 VDC	PC Pin, Quick Connect	0.25 in	1200 W, 12000 VA	SPDT (1 Form C)	Silver Cadmium Oxide (AgCdO)	General Purpose
American Zettler AZ2100-1C-6DE	cURus, VDE	150 mA	40 A	30 VDC, 300 VAC	Non Latching	15 ms	40 Ohms	85 °C	-55 °C	Sealed - Fully	Through Hole	0.6 VDC		10 ms	Class B	4.5 VDC	PC Pin, Quick Connect	0.25 in	1200 W, 12000 VA	SPDT (1 Form C)	Silver Cadmium Oxide (AgCdO)	General Purpose
