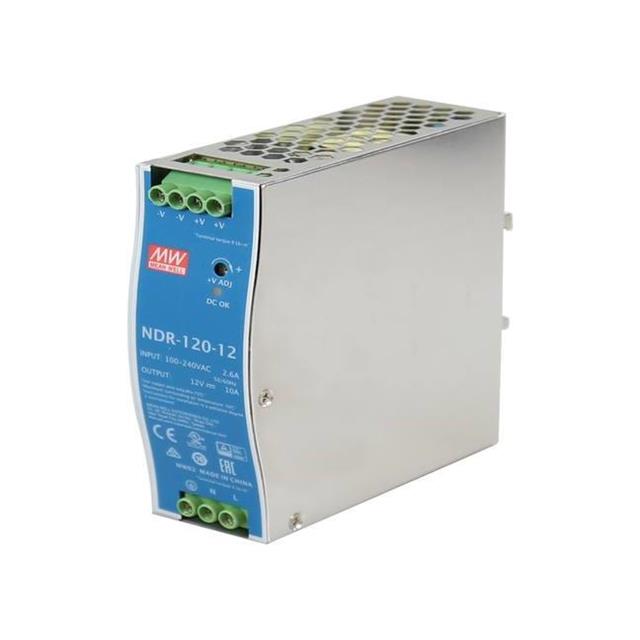

NDR-120-12
ActiveAntaira Technologies
AC/DC CONVERTER 2X12V 120W
NDR-120-12
ActiveAntaira Technologies
AC/DC CONVERTER 2X12V 120W
Description
General part information
NDR-120-12
AC/DC CONVERTER 2X12V 120W
Technical Specifications
Parameters and characteristics for this part
| Specification | NDR-120-12 |
|---|---|
| Applications | Industrial, ITE (Commercial) |
| Approval Agency | TUV, UKCA, CE, EAC, cULus, CB |
| Efficiency | 85.5 % |
| Features | DC Input Capable, Universal Input, Adjustable Output |
| Number of Outputs | 2 |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | -20 °C |
| Power (Watts) | 120 W |
| Size / Dimension Height | 4.93 in |
| Size / Dimension Length | 4.47 in |
| Size / Dimension Width | 1.57 in |
| Standard Number | UL 508, 62368-1 |
| Voltage - Isolation | 3 kV |
| Voltage - Output 1 | 12 V |
| Voltage - Output 2 | 12 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
