DRB120-48-1
ActiveAC/DC DIN RAIL POWER SUPPLY (PSU), ITE, 1 OUTPUT, 120 W, 48 VDC, 2.5 A
DRB120-48-1
ActiveAC/DC DIN RAIL POWER SUPPLY (PSU), ITE, 1 OUTPUT, 120 W, 48 VDC, 2.5 A
Description
General part information
DRB120-48-1

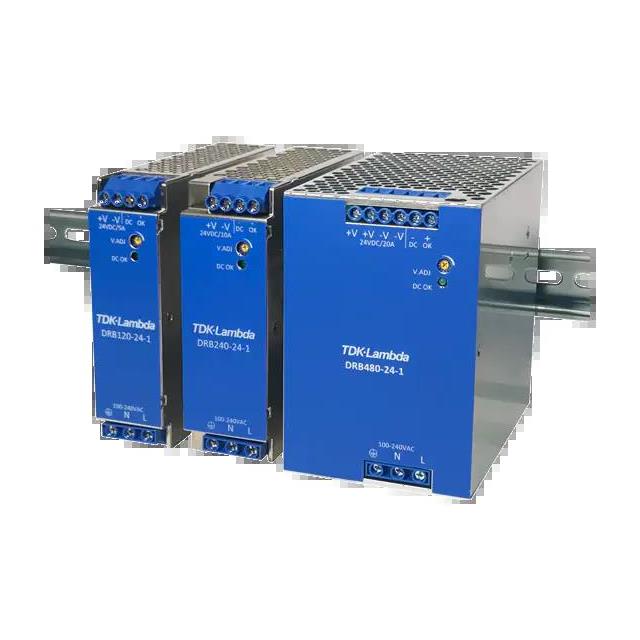

DRB120-48-1 is a DRB120 series DIN rail mount single phase power supply. It supports the growing trend for simple and economically priced DIN power supplies for industrial and process control applications. This combines low cost, reliability and compact dimensions with energy saving efficiencies of up to 93%. Conservatively rated electrolytic capacitor temperatures offer improved field life-times of up to 10 years. It includes overcurrent, overvoltage, overtemperature protection. Application includes industrial, test, semi-fab. Certified by IEC/EN/CSA/UL62368-1, 60950-1, UL508.
Technical Specifications
Parameters and characteristics for this part
| Specification | DRB120-48-1 |
|---|---|
| AC Voltage - Input (Max) | 264 VAC |
| AC Voltage - Input (Min) | 90 VAC |
| Applications | Industrial, ITE (Commercial) |
| Approval Agency | UKCA, IEC, CSA, UL, EN, CE |
| Current - Output (Max) | 2.5 A |
| Efficiency | 91 % |
| Features | Remote Sense, Universal Input, Remote On/Off, PFC, Adjustable Output |
| Input Type | AC |
| Minimum Load Required | No |
| Number of Outputs | 1 |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | -25 °C |
| Power (Watts) | 120 W |
| Size / Dimension Height | 1.38 in |
| Size / Dimension Length | 4.92 in |
| Size / Dimension Width | 4.88 in |
| Standard Number | UL 508, 60950-1, 62368-1 |
| Voltage - Isolation | 3 kV |
| Voltage - Output 1 | 48 V |
