XUB5ANANL2
ActiveSCHNEIDER ELECTRIC

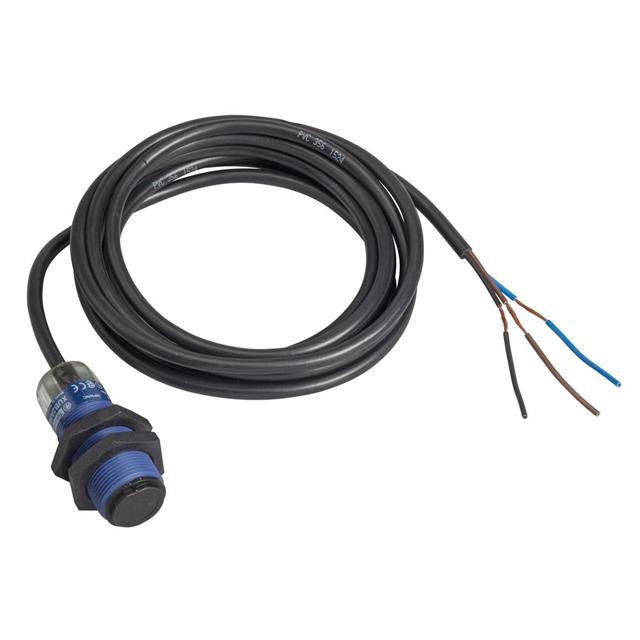

PHOTOELECTRIC SENSOR, 1.97FT, NPN/SPST-NO, DIFFUSE, 12 TO 24VDC, CABLE, OSISENSE XU SERIES
XUB5ANANL2
ActiveSCHNEIDER ELECTRIC
PHOTOELECTRIC SENSOR, 1.97FT, NPN/SPST-NO, DIFFUSE, 12 TO 24VDC, CABLE, OSISENSE XU SERIES
Description
General part information
XUB5ANANL2
Diffuse Optical Sensor 23.622" (600mm) NPN-NO
Technical Specifications
Parameters and characteristics for this part
| Specification | XUB5ANANL2 |
|---|---|
| Adjustment Type | Adjustable |
| Cable Length | 78.74 in |
| Connection Method | Cable |
| Ingress Protection | IP65, IP67 |
| Light Source | Yellow LED |
| Operating Temperature (Max) | 55 °C |
| Operating Temperature (Min) | -25 °C |
| Output Configuration | NPN-NO |
| Response Time | 1 ms |
| Sensing Distance | 23.622 " |
| Sensing Method | Diffuse |
| Voltage - Supply (Maximum) | 24 VAC |
| Voltage - Supply (Minimum) | 12 VDC |
