AD544LH
ActiveAnalog Devices Inc./Maxim Integrated
IC OPAMP JFET 1 CIRCUIT TO99-8
AD544LH
ActiveAnalog Devices Inc./Maxim Integrated
IC OPAMP JFET 1 CIRCUIT TO99-8
Description
General part information
AD544LH
J-FET Amplifier 1 Circuit TO-99-8
Technical Specifications
Parameters and characteristics for this part
| Specification | AD544LH |
|---|---|
| -3db Bandwidth | 50 kHz |
| Amplifier Type | J-FET |
| Current - Input Bias | 10 pA |
| Current - Output / Channel | 25 mA |
| Current - Supply | 1.8 mA |
| Mounting Type | Through Hole |
| Number of Circuits | 1 |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | 0 °C |

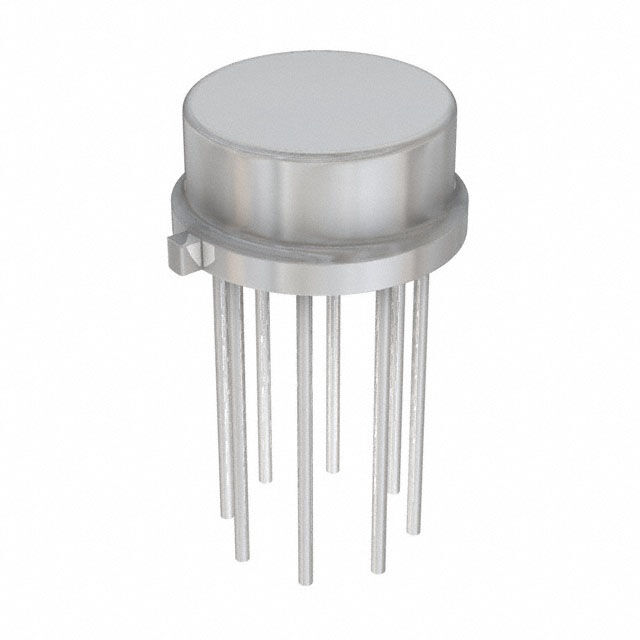

| Package / Case | TO-99-8 Metal Can |
| Package Name | TO-99-8 |
| Slew Rate | 13 V/µs |
| Voltage - Input Offset | 500 µV |
| Voltage - Supply Span (Max) | 36 V |
| Voltage - Supply Span (Min) | 10 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
No documents available
