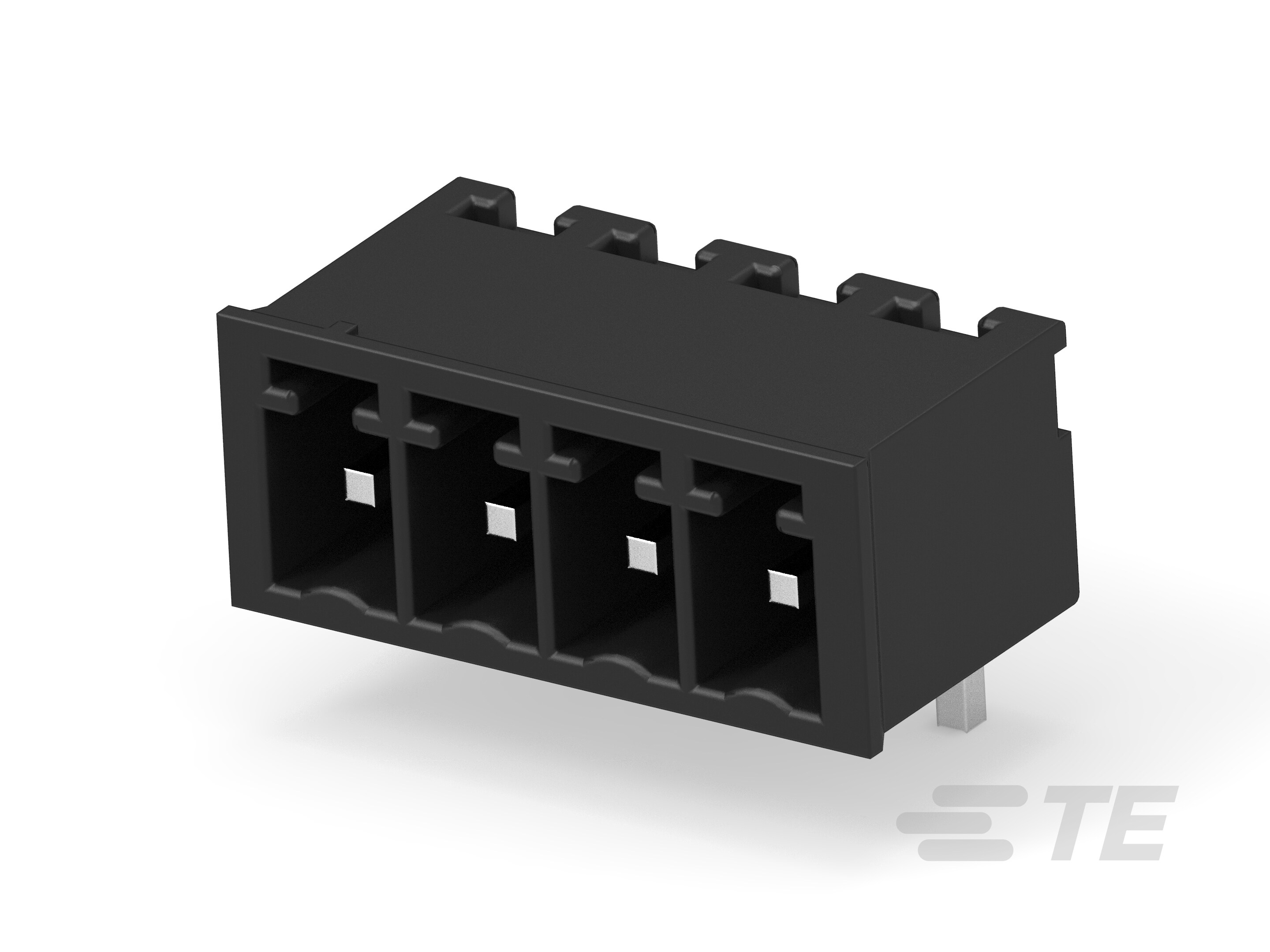

4P HDR CLOSED END,90 DEG,CL 3.81,BLK-1986343-4

1986343-4

Active
TE Connectivity AMP Connectors

4P HDR CLOSED END,90 DEG,CL 3.81,BLK

Find alt
4P HDR CLOSED END,90 DEG,CL 3.81,BLK-1986343-4

1986343-4

Active
TE Connectivity AMP Connectors

4P HDR CLOSED END,90 DEG,CL 3.81,BLK

Find alt

Description

General part information

1986343-4

4 Position PCB Terminal Block, Header, Wire-to-Board, 3.81 mm [.15 in] Centerline, 1 Row, 30 – 14 AWG, .05 – 2 mm² Wire, 300 VAC

Technical Specifications

Parameters and characteristics for this part

Specification1986343-4
ColorBlack
Contact Mating FinishTin
Current - UL11 A
Header OrientationRight Angle
Header Orientation Angle90 °
Mounting TypeThrough Hole
Number of Levels1
Number of Positions4
Operating Temperature (Max)110 °C
Operating Temperature (Min)-40 °C
Pitch0.15 in
Positions Per Level4
Termination StyleSolder
TypeShrouded (4 Side), Male Pins, Header
Voltage - UL300 V
