1620311
ObsoletePhoenix Contact

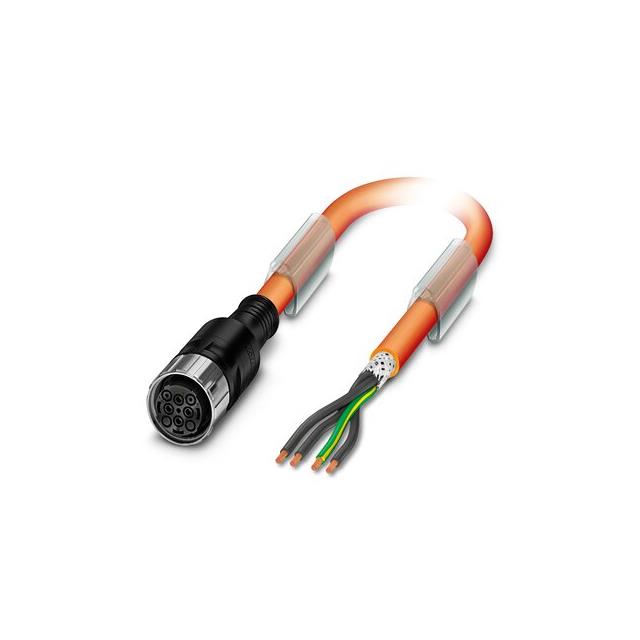

CBL CIRC 6POS FEM TO WIRE 6.56'
1620311
ObsoletePhoenix Contact
CBL CIRC 6POS FEM TO WIRE 6.56'
Description
General part information
1620311
Cable Assembly 6.56' (2.00m)
Technical Specifications
Parameters and characteristics for this part
| Specification | 1620311 |
|---|---|
| 1st Connector Gender | Female Sockets |
| 1st Connector Mounting Type | Free Hanging (In-Line) |
| 1st Connector Number of Positions | 6 positions |
| 1st Connector Number of Positions (Power) | 3 positions |
| 1st Connector Number of Positions (Signal) | 2 positions |
| 1st Connector Number of Positions Loaded | All |
| 1st Connector Orientation | Keyed |
| 1st Connector Position Types | PE |
| 1st Connector Shell Size - Insert | M40 |
| 1st Connector Type | Plug |
| 2nd Connector Type | Wire Leads |
| Assembly Configuration | Standard |
| Cable Material | Polyurethane (PUR) |
| Cable Type | Round |
| Color | Orange |
| Ingress Protection Description | Waterproof, Dust Tight |
| Ingress Protection IP Rating | IP67 |
| Length | 6.56 ft |
| Shielding | Shielded |
| Usage | Industrial Environments |
