Description
General part information
XXA30P2VM12

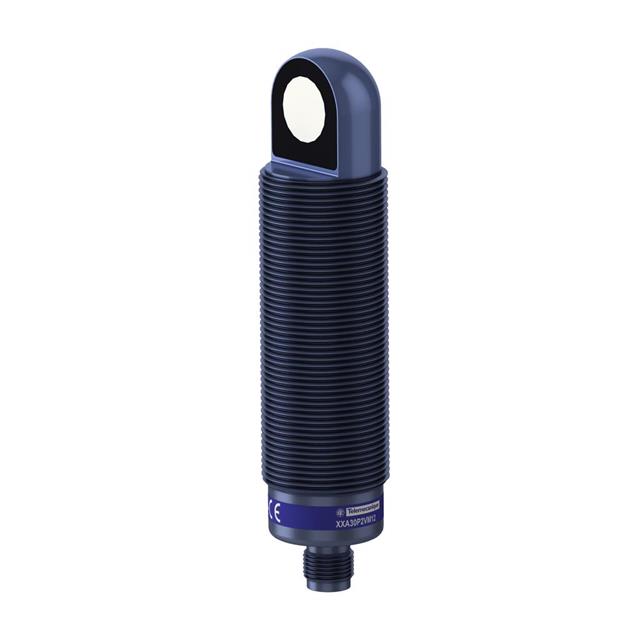

Ultrasonic Proximity Sensor 0.079" (2mm) IP65, IP67 Cylinder, Threaded - M30
Technical Specifications
Parameters and characteristics for this part
| Specification | XXA30P2VM12 |
|---|---|
| Indicator | LED |
| Ingress Protection | IP65, IP67 |
| Material - Body | Polybutylene Terephthalate (PBT) |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | -25 °C |
| Output Type | Analog Voltage |
| Package / Case | Cylinder, Threaded - M30 |
| Sensing Distance | 0.079 " |
| Sensor Type | Ultrasonic |
| Shielding | Unshielded |
| Termination Style | Connector |
| Voltage - Supply | 24 VDC |
