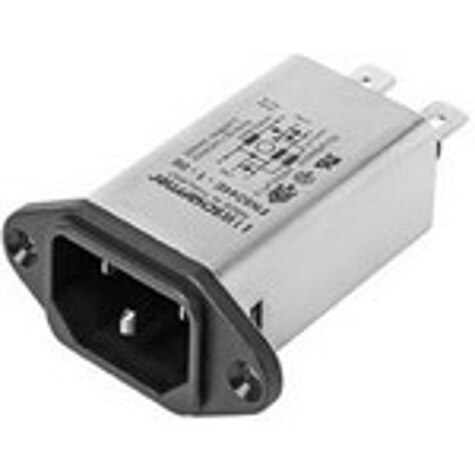

Specification	FN9244EB-3-06

Accomodates a Fuse	No
Approval Agency	ENEC, UL, CQC, CSA
Connector Style	IEC 320-C14
Connector Type	Male Blades, Receptacle
Current Rating - Filter	3 A
Features	Earth Line Choke, Bleed Resistor, Front or Rear Side Mount
Filter Application	Medical, Commercial
Filter Subtype	EMI, RFI
Filter Type	Filtered
Ingress Protection	IP40
Material Flammability Rating	UL94 V-2
Mounting Type	Panel Mount, Flange
Number of Positions	3
Panel Cutout Length	28.5 mm
Panel Cutout Shape	Rectangular
Panel Cutout Width	21.5 mm
Termination	Quick Connect
Termination Probe Tip OD	0.25 in

Schaffner FN9244 Series

...

Part	Panel Thickness (Min)	Panel Thickness (Max)	Mounting Type	Filter Subtype	Filter Application	Filter Type	Features	Termination Probe Tip OD	Termination	Accomodates a Fuse	Approval Agency	Panel Cutout Width	Panel Cutout Shape	Panel Cutout Length	Number of Positions	Ingress Protection	Connector Type	Current Rating - Filter	Material Flammability Rating	Connector Style
TE Connectivity AMP Connectors FN9244S1B-12-06	0.028 in	0.059 in	Panel Mount Snap-In	EMI RFI	Commercial Medical	Filtered	Bleed Resistor	0.25 in	Quick Connect	No	CQC CSA ENEC UL	21.9 mm	Rectangular	28.5 mm	3	IP40	Male Blades Receptacle	12 A	UL94 V-2	IEC 320-C14
TE Connectivity AMP Connectors FN9244ES-15-06	0.028 in	0.059 in	Panel Mount Snap-In	EMI RFI	Commercial	Filtered	Earth Line Choke	0.25 in	Quick Connect	No	CQC CSA ENEC UL	20.8 mm	Rectangular	29.4 mm	3	IP40	Male Blades Receptacle	15 A	UL94 V-2	IEC 320-C14
TE Connectivity AMP Connectors FN9244SR-1-06-20	0.059 in	0.087 in	Panel Mount Snap-In	EMI RFI	Commercial	Filtered		0.25 in	Quick Connect	No	CE CQC CSA ENEC UL	20.8 mm	Rectangular	29.4 mm	3	IP40	Male Blades Receptacle	1.2 A	UL94 V-2	IEC 320-C14
TE Connectivity AMP Connectors FN9244EU-1-06			Flange Panel Mount	EMI RFI	Commercial	Filtered	Earth Line Choke Front or Rear Side Mount	0.25 in	Quick Connect	No	CQC CSA ENEC UL	21.5 mm	Rectangular	28.5 mm	3	IP40	Male Blades Receptacle	1 A	UL94 V-2	IEC 320-C14
TE Connectivity AMP Connectors FN9244B-12-06HI			Flange Panel Mount	EMI RFI	Commercial Medical	Filtered	Bleed Resistor Front or Rear Side Mount	0.25 in	Quick Connect	No	CSA ENEC UL	21.5 mm	Rectangular	28.5 mm	3	IP40	Male Blades Receptacle	12 A	UL94 V-2	IEC 320-C16
TE Connectivity AMP Connectors FN9244ER-8-06			Flange Panel Mount	EMI RFI	Commercial	Filtered	Bleed Resistor Earth Line Choke Front or Rear Side Mount	0.25 in	Quick Connect	No	CQC CSA ENEC UL	21.5 mm	Rectangular	28.5 mm	3	IP40	Male Blades Receptacle	8 A	UL94 V-2	IEC 320-C14
TE Connectivity AMP Connectors FN9244EB-12-06HI			Flange Panel Mount	EMI RFI	Commercial Medical	Filtered	Bleed Resistor Earth Line Choke Front or Rear Side Mount	0.25 in	Quick Connect	No	CSA ENEC UL	21.5 mm	Rectangular	28.5 mm	3	IP40	Male Blades Receptacle	12 A	UL94 V-2	IEC 320-C16
TE Connectivity AMP Connectors FN9244-1-06			Flange Panel Mount	EMI RFI	Commercial	Filtered	Front or Rear Side Mount	0.25 in	Quick Connect	No	CQC CSA ENEC UL	21.5 mm	Rectangular	28.5 mm	3	IP40	Male Blades Receptacle	1 A	UL94 V-2	IEC 320-C14
TE Connectivity AMP Connectors FN9244EB-6-06			Flange Panel Mount	EMI RFI	Commercial Medical	Filtered	Bleed Resistor Earth Line Choke Front or Rear Side Mount	0.25 in	Quick Connect	No	CQC CSA ENEC UL	21.5 mm	Rectangular	28.5 mm	3	IP40	Male Blades Receptacle	6 A	UL94 V-2	IEC 320-C14
TE Connectivity AMP Connectors FN9244U-12-06			Flange Panel Mount	EMI RFI	Commercial	Filtered	Front or Rear Side Mount	0.25 in	Quick Connect	No	CQC CSA ENEC UL	21.5 mm	Rectangular	28.5 mm	3	IP40	Male Blades Receptacle	12 A	UL94 V-2	IEC 320-C14
