PA3790.201HLT
ActivePulse Electronics
FIXED IND 200NH 57A 0.29MOHM SMD
PA3790.201HLT
ActivePulse Electronics
FIXED IND 200NH 57A 0.29MOHM SMD
Description
General part information
PA3790.201HLT

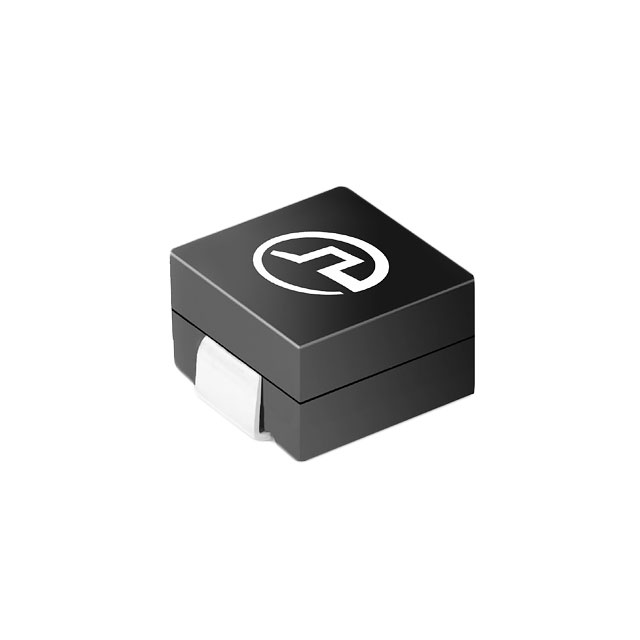

200 nH Shielded Inductor 57 A 0.29mOhm Nonstandard
Technical Specifications
Parameters and characteristics for this part
| Specification | PA3790.201HLT |
|---|---|
| Current - Saturation (Isat) | 73 A |
| Current Rating | 57 A |
| DC Resistance (DCR) | 0.29 mOhm |
| Height - Seated (Max) | 0.315 in |
| Inductance | 200 nH |
| Inductance Frequency - Test | 100 kHz |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 130 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | Nonstandard |
| Shielding | Shielded |
| Size / Dimension Length | 0.492 in |
| Size / Dimension Width | 0.315 in |
| Tolerance | 15 % |
