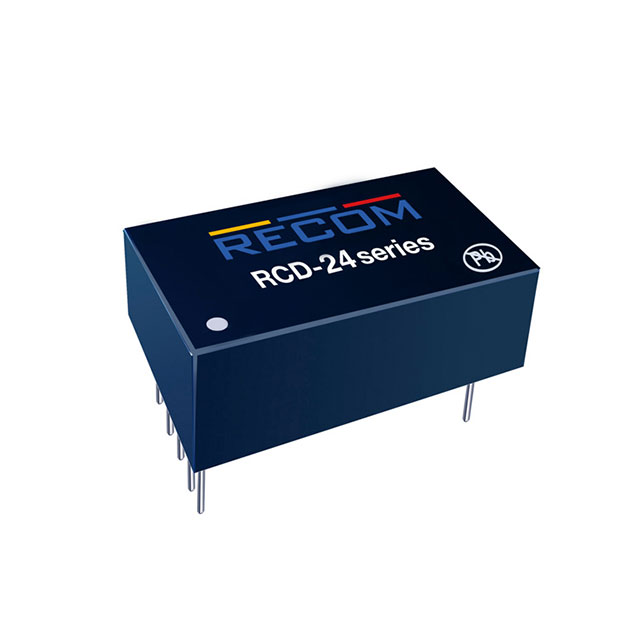

RCD-24-0.30/SMD/OF
ObsoleteRecom Power
LED DRIVER CC BUCK 2-35V 300MA
RCD-24-0.30/SMD/OF
ObsoleteRecom Power
LED DRIVER CC BUCK 2-35V 300MA
Description
General part information
RCD-24-0.30/SMD/OF
300mA 2 ~ 35V Constant Current LED Driver Buck Topology 1 Output
Technical Specifications
Parameters and characteristics for this part
| Specification | RCD-24-0.30/SMD/OF |
|---|---|
| Approval Agency | cULus |
| Current - Output (Max) | 300 mA |
| Efficiency | 96 % |
| Features | Remote On/Off, SCP |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | 6-SMD |
| Power (Watts) | 11 W |
| Size / Dimension Height | 0.33 in |
| Size / Dimension Length | 0.87 in |
| Size / Dimension Width | 0.49 in |
| Topology | Buck |
| Type | Constant Current |
| Voltage - Input (Max) | 36 V |
| Voltage - Input (Min) | 4.5 V |
| Voltage - Output (Max) | 35 VDC |
| Voltage - Output (Min) | 2 V |
| Weight | 0.004 lb |
