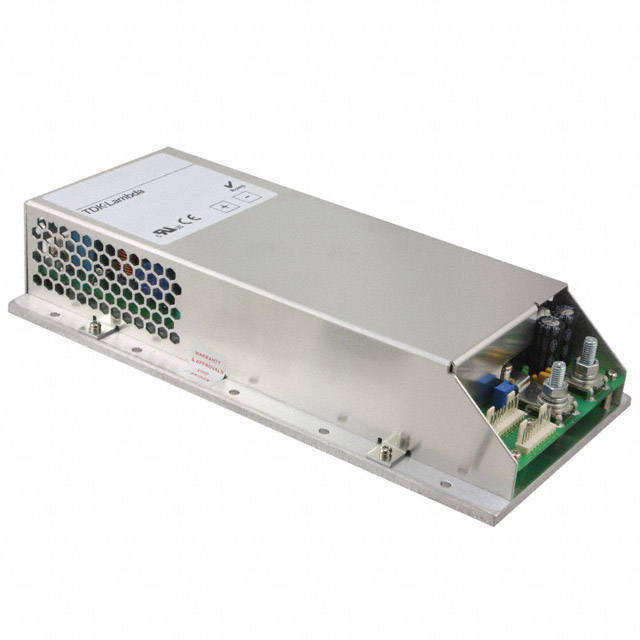

CPFE500F-12-NL-C
ObsoleteTDK Corporation
AC/DC CONVERTER 12V 500W
CPFE500F-12-NL-C
ObsoleteTDK Corporation
AC/DC CONVERTER 12V 500W
Description
General part information
CPFE500F-12-NL-C
Enclosed, Conformal Coated AC DC Converters 1 Output 12V 90 ~ 265 VAC Input
Technical Specifications
Parameters and characteristics for this part
| Specification | CPFE500F-12-NL-C |
|---|---|
| Applications | ITE (Commercial) |
| Approval Agency | CE |
| Current - Output 1 | 42 A |
| Efficiency | 85 % |
| Features | Baseplate, Remote On/Off, Load Sharing, Standby Output, Remote Sense, Adjustable Output, Universal Input |
| Mounting Type | Chassis Mount |
| Number of Outputs | 1 |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Power (Watts) | 500 W |
| Size / Dimension Height | 2.15 in |
| Size / Dimension Length | 10.63 in |
| Size / Dimension Width | 4.96 in |
| Type | Enclosed, Conformal Coated |
| Voltage - Input (AC) Maximum | 265 VAC |
| Voltage - Input (AC) Minimum | 90 V |
| Voltage - Isolation | 4242 V |
| Voltage - Output 1 | 12 V |
