LCCA30562-FT1
ActivePasternack
SMA F TO TNC M USING LC085TB, 1
LCCA30562-FT1
ActivePasternack
SMA F TO TNC M USING LC085TB, 1
Description
General part information
LCCA30562-FT1

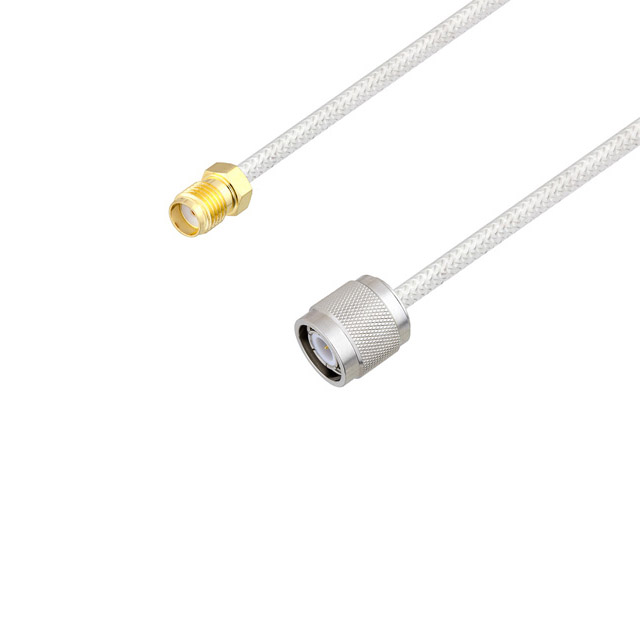

Cable Assembly Coaxial SMA to TNC LC085TB 12.00" (304.80mm)
Technical Specifications
Parameters and characteristics for this part
| Specification | LCCA30562-FT1 |
|---|---|
| 1st Connector | SMA Jack |
| 1st Connector Mounting Type | Free Hanging (In-Line) |
| 1st Contact Gender | Female |
| 2nd Connector | TNC Plug |
| 2nd Connector Mounting Type | Free Hanging (In-Line) |
| 2nd Contact Gender | Male |
| Cable Impedance | 50 Ohms |
| Cable Type | LC085TB |
| Connector Impedance | 50 Ohms |
| Frequency - Max | 6000 MHz |
| Length | 12 in |
| Overall Impedance | 50 Ohms |
| Style | SMA, TNC |
