11-10
Active3M Electronic Specialty

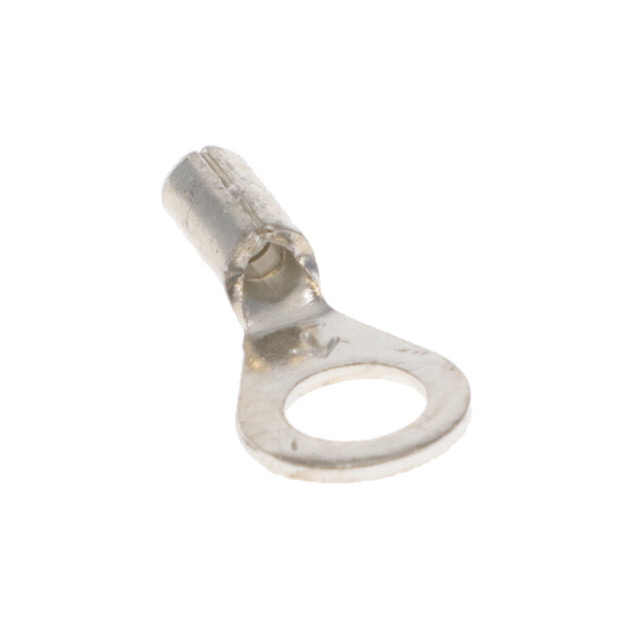

22-18 AWG NON-INSULATED BUTTED SEAM RING TONGUE TERMINAL
11-10
Active3M Electronic Specialty
22-18 AWG NON-INSULATED BUTTED SEAM RING TONGUE TERMINAL
Description
General part information
11-10
Ring Terminal Connector 10 Stud Circular 18-22 AWG Crimp
Technical Specifications
Parameters and characteristics for this part
| Specification | 11-10 |
|---|---|
| Features | Butted Seam |
| Insulation | Non-Insulated |
| Length - Overall | 0.701 in |
| Mounting Type | Free Hanging (In-Line) |
| Stud/Tab Size | 10 Stud |
| Terminal Type | Circular |
| Termination | Crimp |
| Thickness | 0.03 in |
| Width - Outer Edges | 0.33 in |
| Wire Gauge (AWG) (Max) | 22 AWG |
| Wire Gauge (AWG) (Min) | 18 AWG |
