B82559A7153A025
ActiveEPCOS - TDK Electronics
FIXED IND 15UH 2.55 MOHM SMD
B82559A7153A025
ActiveEPCOS - TDK Electronics
FIXED IND 15UH 2.55 MOHM SMD
Description
General part information
B82559A7153A025

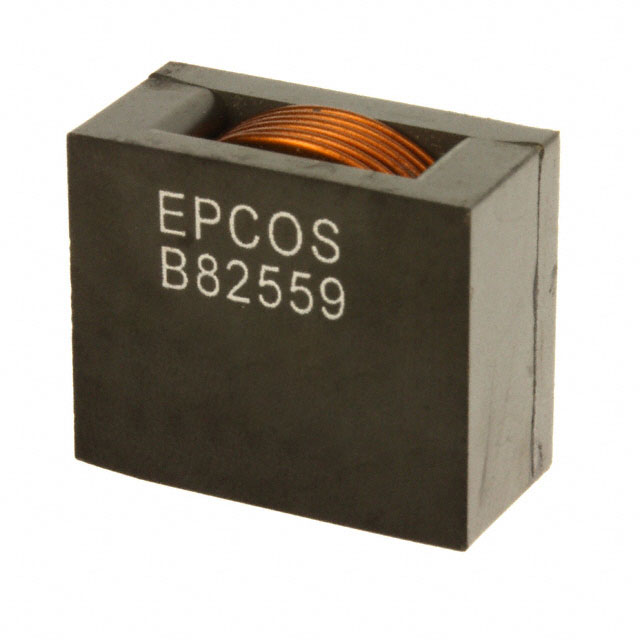

15 µH Shielded Drum Core, Wirewound Inductor 2.55mOhm Max Nonstandard
Technical Specifications
Parameters and characteristics for this part
| Specification | B82559A7153A025 |
|---|---|
| Current - Saturation (Isat) | 14 A |
| DC Resistance (DCR) (Max) | 2.55 mOhm |
| Height - Seated (Max) | 0.52 in |
| Inductance | 15 µH |
| Inductance Frequency - Test | 10 kHz |
| Material - Core | Ferrite |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | Nonstandard |
| Shielding | Shielded |
| Size / Dimension Length | 0.996 in |
| Size / Dimension Width | 0.925 in |
| Tolerance | 7 % |
| Type | Drum Core, Wirewound |
