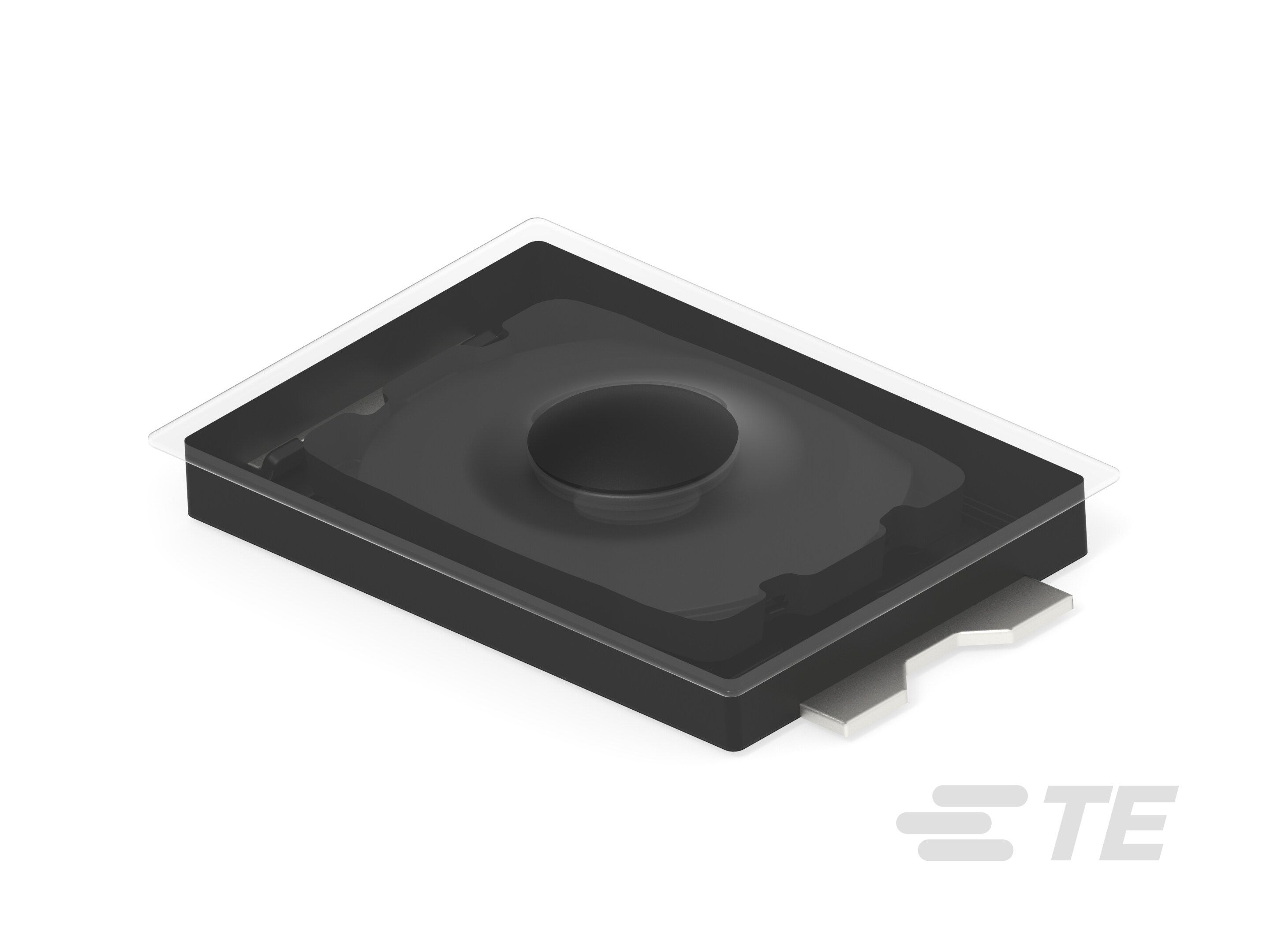

Specification	2425753-2

Actuator Height off PCB (Vertical)	0.6 mm
Actuator Orientation	Top Actuated
Actuator Type	Round Button
Circuit	SPST-NO
Contact Rating (Current)	0.02 A
Illumination	Non-Illuminated
Ingress Protection Description	Waterproof, Dust Tight
Ingress Protection IP Rating	IP67
Mounting Type	Surface Mount
Operating Force	240 gf
Operating Temperature (Max)	85 °C
Operating Temperature (Min)	-40 °C
Outline Length	3 mm
Outline Width	2 mm
Switch Function	Off-Mom
Termination Style	SMD (SMT) Tab
