Description
General part information

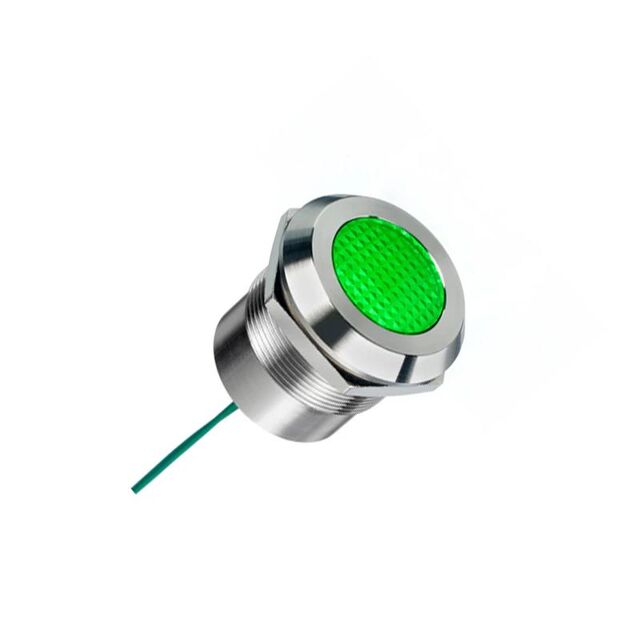

Q30Y5SXXG1AE
LED Panel Indicator Green Fresnel 60° 7.5V 30mA Wire Leads - 8.268" (210.0mm)
Technical Specifications
Parameters and characteristics for this part
| Specification | Q30Y5SXXG1AE |
|---|---|
| Current | 30 mA |
| Ingress Protection | IP69K, IP67 |
| Lamp Color | Green |
| Lens Color | Green |
| Lens Diameter | 23.2 mm |
| Lens Style | Round, Flat Top |
| Lens Transparency | Fresnel |
| Millicandela Rating | 5200 mcd |
| Panel Cutout Dimension | 1.18 " |
| Panel Cutout Shape | Round |
| Ratings | AC, DC |
| Termination Length | 8.268 in |
| Termination Style | Wire Leads |
| Type | LED |
| Viewing Angle | 60 ° |
| Voltage | 7.5 V |
