Cable Assemblies

M12A-05BFFM-SR8B01

Active

SENSOR CABLES / ACTUATOR CABLES M12 CIRCULAR METRIC CONNECTOR, A CODE, METAL, 4A, 05 PINS, FEMALE CONNECTOR, FEMALE CONTACT, RIGHT ANGLE, SCREW THREAD, OVERMOLDED, LENGTH 1000MM, IP68 / IP69K

Cable Assemblies

M12A-05BFFM-SR8B01

Active

McGill Microwave Systems

SENSOR CABLES / ACTUATOR CABLES M12 CIRCULAR METRIC CONNECTOR, A CODE, METAL, 4A, 05 PINS, FEMALE CONNECTOR, FEMALE CONTACT, RIGHT ANGLE, SCREW THREAD, OVERMOLDED, LENGTH 1000MM, IP68 / IP69K

Specifications Series Pricing CAD Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	M12A-05BFFM-SR8B01

1st Connector Gender	Female Sockets
1st Connector Mounting Type	Free Hanging (In-Line)
1st Connector Number of Positions	5 positions
1st Connector Number of Positions Loaded	All
1st Connector Orientation	A
1st Connector Shell Size - Insert	M12
1st Connector Type	Right Angle, Plug
2nd Connector Type	Wire Leads
Assembly Configuration	Standard
Cable Material	Polyurethane (PUR)
Cable Type	Round
Color	Black
Ingress Protection Description	Water Resistant, Waterproof, Dust Tight
Ingress Protection IP Rating	IP69K, IP68
Length	3.28 ft
Shielding	Unshielded
Usage	Industrial Environments

M Series

...

Part	1st Connector Orientation	Cable Type	Length	1st Connector Number of Positions	Usage	1st Connector Gender	2nd Connector Type	1st Connector Mounting Type	Cable Material	1st Connector Type	Assembly Configuration	1st Connector Number of Positions Loaded	Shielding	Ingress Protection Description	Ingress Protection IP Rating	Color	1st Connector Shell Size - Insert	Connector Type	Mounting Type	Operating Temperature (Max)	Operating Temperature (Min)	Internal Switch(s)	Gender	Industry Recognized Mating Diameter (Headphone)	Number of Conductors	Number of Contacts	Termination	Features	Signal Lines	Orientation	Mounting Feature	Voltage Rating	Voltage Rating (Type)	Fastening Type	Number of Positions	Shell Material	Current Rating	Shell Finish	Shell Size - Insert	Primary Material	Contact Finish - Mating	Insert Material	Contact Material	Backshell Material, Plating
McGill Microwave Systems CA0161A22607012	Keyed	Round	23 ft	7 positions	Industrial Environments	Male Pins	Wire Leads	Free Hanging (In-Line)	Polyvinyl Chloride (PVC)	Receptacle	Standard	All	Unshielded	Dust Tight Waterproof; NMEA 2000	IP68	Black
McGill Microwave Systems 8AP-06AMMM-SL7A05	Keyed	Round	1.64 ft	6 positions	Industrial Environments	Male Pins	Wire Leads	Free Hanging (In-Line)	Polyvinyl Chloride (PVC)	Plug	Standard	All	Shielded	Dust Tight Waterproof	IP67	Black	M8
McGill Microwave Systems ACJS-MV-3S													Unshielded					Phone Jack	Panel Mount Through Hole	70 °C	-25 °C	Does Not Contain Switch	Female	6.35 mm	3 Conductors	4 Contacts	Press-Fit Solder	Mounting Hardware Thread Lock	3 Conductor Stereo TRS
McGill Microwave Systems 8H-05AFFM-SL7A03	Keyed	Round	9.84 ft	5 positions	Industrial Environments	Female Sockets	Wire Leads	Free Hanging (In-Line)	Polyvinyl Chloride (PVC)	Receptacle	Standard	All	Unshielded	Dust Tight Waterproof	IP67	Black	M8

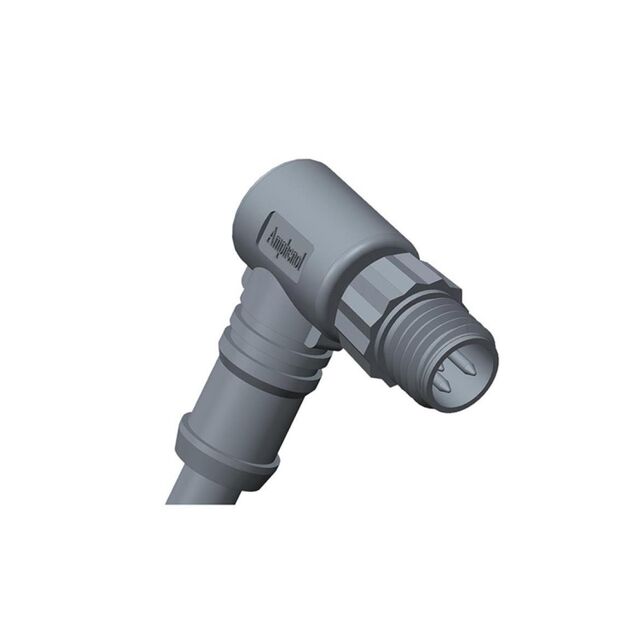

McGill Microwave Systems 8P-03BMMM-SR7A01		Round	3.28 ft	3 positions	Industrial Environments	Male Pins	Wire Leads	Free Hanging (In-Line)	Polyvinyl Chloride (PVC)	Plug Right Angle	Standard	All	Unshielded	Dust Tight Waterproof	IP67	Black	M8

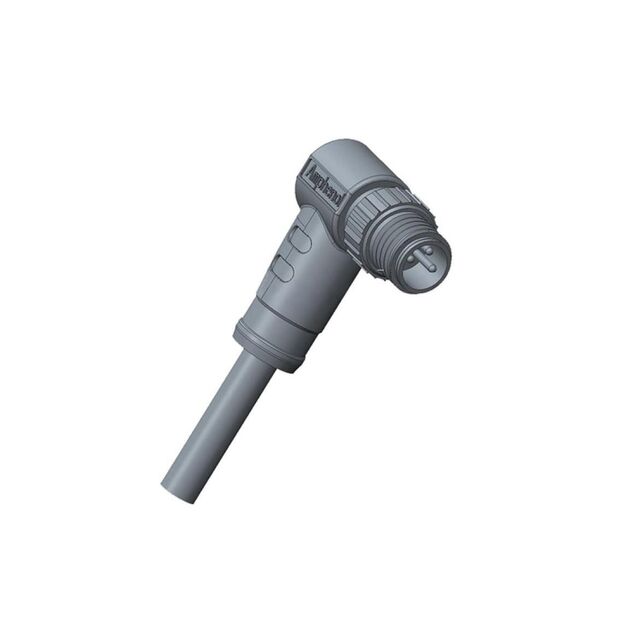

McGill Microwave Systems M8S-03BMMM-SR7D01		Round	3.28 ft	3 positions	Industrial Environments	Male Pins	Wire Leads	Free Hanging (In-Line)	Polyvinyl Chloride (PVC)	Receptacle Right Angle	Standard	All	Shielded	Dust Tight Waterproof	IP67	Black	M8
McGill Microwave Systems M12A-05PMMP-SF8001													Shielded	Dust Tight Water Resistant Waterproof	IP68 IP69K	Silver		Male Pins Receptacle	Panel Mount Through Hole	105 °C	-40 °C						Solder			A	Bulkhead Front Side Nut	60 V	DC	Threaded	5	Zinc Alloy	4 A	Nickel	M12-5	Metal	Gold	Glass Filled Nylon PA Polyamide	Copper Alloy	Copper Alloy
McGill Microwave Systems 8P-03BMMM-SL7B10		Round	32.8 ft	3 positions	Industrial Environments	Male Pins	Wire Leads	Free Hanging (In-Line)	Polyurethane (PUR)	Plug	Standard	All	Unshielded	Dust Tight Waterproof	IP67	Black	M8
McGill Microwave Systems 8-04AFFM-SL7B04		Round	13.12 ft	4 positions	Industrial Environments	Female Sockets	Wire Leads	Free Hanging (In-Line)	Polyvinyl Chloride (PVC)	Receptacle	Standard	All	Unshielded	Dust Tight Waterproof	IP67	Black	M8
McGill Microwave Systems 8-03BFFM-SR7A02		Round	6.56 ft	3 positions	Industrial Environments	Female Sockets	Wire Leads	Free Hanging (In-Line)	Polyvinyl Chloride (PVC)	Receptacle Right Angle	Standard	All	Unshielded	Dust Tight Waterproof	IP67	Black	M8
