Specification	CHA0410-R160-00PD0Z0AL7C

Configuration	Square
CRI (Color Rendering Index)	95
Current - Max	300 mA
Current - Test	175 mA
Height	1.5 mm
Lens Type	Flat
Light Emitting Surface (LES) Diameter	4.2 mm
Size / Dimension Length	13.5 mm
Size / Dimension Width	13.5 mm
Temperature - Test	85 °C
Type	Chip On Board (COB)
Viewing Angle	114 °
Voltage - Forward (Vf) (Typ)	12 VAC

CHA0410 Series

Part	Lens Type	Light Emitting Surface (LES) Diameter	Height	Current - Max	Color	Configuration	Temperature - Test	Viewing Angle	Size / Dimension Width	Size / Dimension Length	Current - Test	Type	CRI (Color Rendering Index)	CCT (K)	Voltage - Forward (Vf) (Typ)	Luminous Flux (Typical)	CCT Description	Lumens/Watt	Luminous Flux
CreeLED, Inc. CHA0410-R160-00PN0U0A27G	Flat	4.2 mm	1.5 mm	900 mA	Warm White	Square	85 °C	114 °	13.5 mm	13.5 mm	525 mA	Chip On Board (COB)	90	2700 K	36 V
CreeLED, Inc. CHA0410-R160-00PD0U0A40H	Flat	4.2 mm	1.5 mm	300 mA	Neutral White	Square	85 °C	114 °	13.5 mm	13.5 mm	175 mA	Chip On Board (COB)	90	4000 K	12 VAC
CreeLED, Inc. CHA0410-R160-00PD0U0A35G	Flat	4.2 mm	1.5 mm	300 mA	Warm White	Square	85 °C	114 °	13.5 mm	13.5 mm	175 mA	Chip On Board (COB)	90	3500 K	12 VAC
CreeLED, Inc. CHA0410-0000-000D0U0A30G	Flat	4.2 mm	1.5 mm	900 mA	Warm White	Square	85 °C	114 °	13.5 mm	13.5 mm	525 mA	Chip On Board (COB)	90	3000 K	12 VAC	693 lm	3-Step MacAdam Ellipse	110 lm/W
CreeLED, Inc. CHA0410-R160-00PD0Z0A30H	Flat	4.2 mm	1.5 mm	300 mA	Warm White	Square	85 °C	114 °	13.5 mm	13.5 mm	175 mA	Chip On Board (COB)	95	3000 K	12 VAC
CreeLED, Inc. CHA0410-R160-00PN0U0A35G	Flat	4.2 mm	1.5 mm	900 mA	Warm White	Square	85 °C	114 °	13.5 mm	13.5 mm	525 mA	Chip On Board (COB)	90	3500 K	36 V

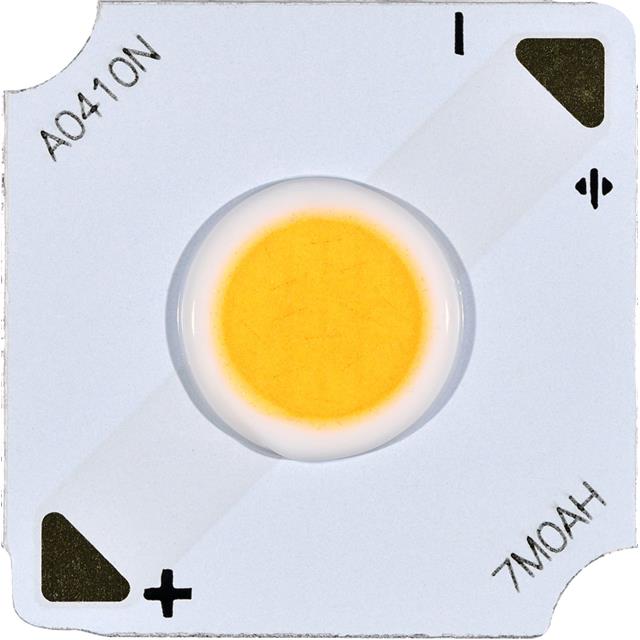

CreeLED, Inc. CHA0410-0000-000N0H0A27G	Flat	4.2 mm	1.9 mm	300 mA	Warm White	Square	85 °C	114 °	13.5 mm	13.5 mm	175 mA	Chip On Board (COB)	80	2700 K	36 V	748 lm	3-Step MacAdam Ellipse	119 lm/W
CreeLED, Inc. CHA0410-R160-00PN0U0A27H	Flat	4.2 mm	1.5 mm	900 mA	Warm White	Square	85 °C	114 °	13.5 mm	13.5 mm	525 mA	Chip On Board (COB)	90	2700 K	36 V
CreeLED, Inc. CHA0410-R160-000N0U0A35G	Flat	4.2 mm	1.9 mm	300 mA	Warm White	Square	85 °C	114 °	13.5 mm	13.5 mm	175 mA	Chip On Board (COB)	90	3500 K	36 V		3-Step MacAdam Ellipse	113 lm/W	711 lm
CreeLED, Inc. CHA0410-R160-00PN0U0A40H	Flat	4.2 mm	1.5 mm	900 mA	Neutral White	Square	85 °C	114 °	13.5 mm	13.5 mm	525 mA	Chip On Board (COB)	90	4000 K	36 V
