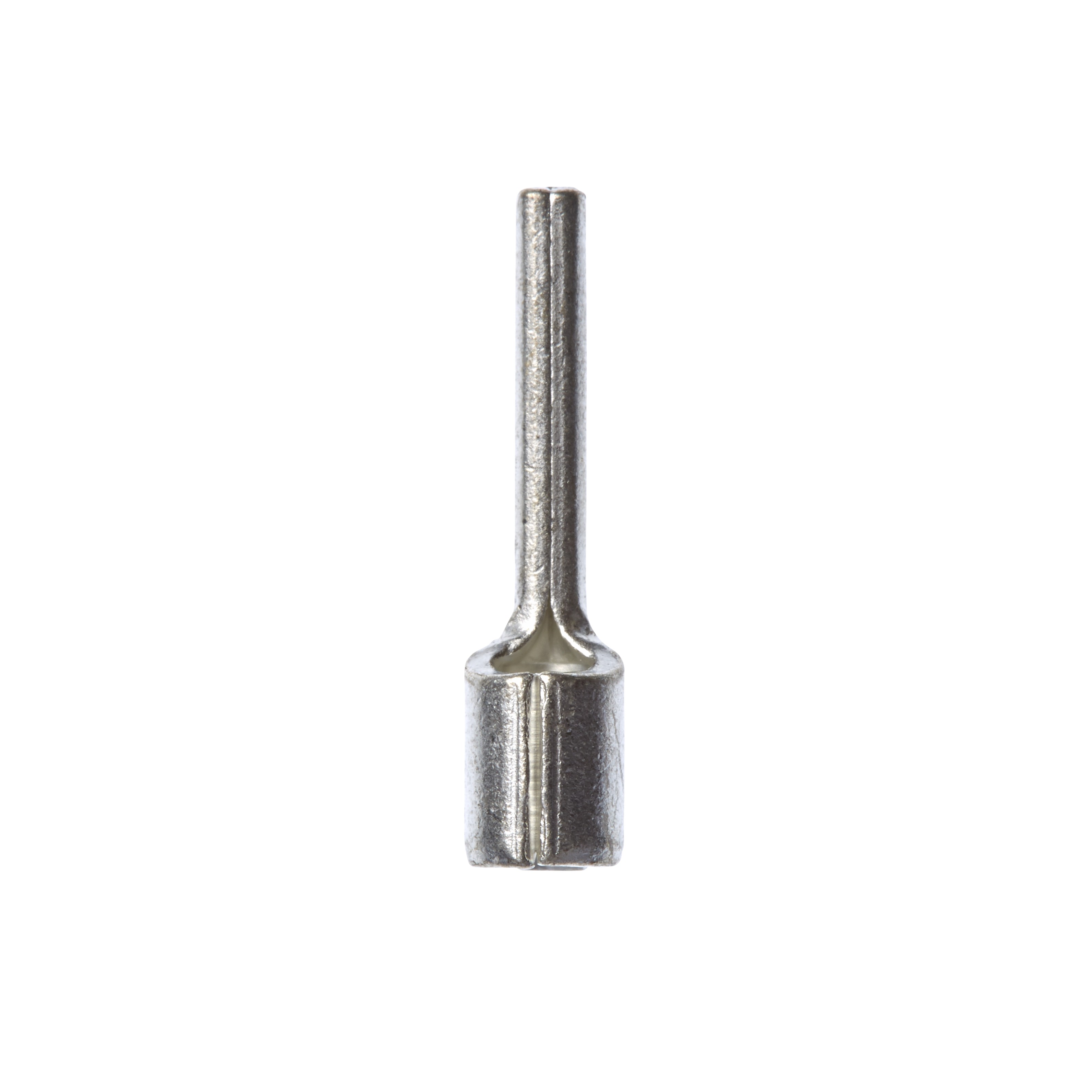

MU14-47PK-A
Active3M Electronic Specialty
NON-INSULATED BUTTED SEAM PIN TERMINAL
MU14-47PK-A
Active3M Electronic Specialty
NON-INSULATED BUTTED SEAM PIN TERMINAL
Description
General part information
MU14-47PK-A
NON-INSULATED BUTTED SEAM PIN TERMINAL
Technical Specifications
Parameters and characteristics for this part
| Specification | MU14-47PK-A |
|---|---|
| Features | Butted Seam |
| Insulation | Non-Insulated |
| Length - Overall | 0.73 in |
| Length - Pin | 0.47 " |
| Pin Diameter | 0.08 in |
| Pin Diameter Shape | Circular |
| Termination | Crimp |
| Wire Gauge (AWG) (Max) | 16 AWG |
| Wire Gauge (AWG) (Min) | 14 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
No documents available
