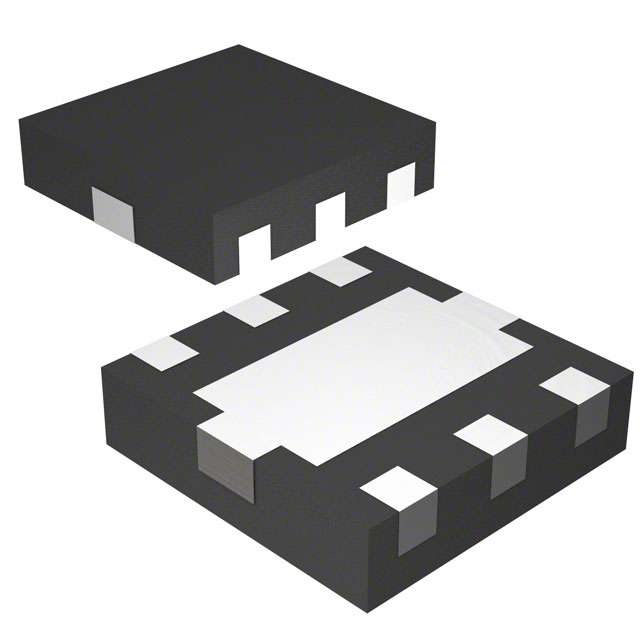

UPC8236T6N-E2-A
ObsoleteRenesas Electronics Corporation
IC RF AMP GPS 1575.42MHZ 6TSON
UPC8236T6N-E2-A
ObsoleteRenesas Electronics Corporation
IC RF AMP GPS 1575.42MHZ 6TSON
Description
General part information
UPC8236T6N-E2-A
RF Amplifier IC GPS 1575.42MHz 6-TSON
Technical Specifications
Parameters and characteristics for this part
| Specification | UPC8236T6N-E2-A |
|---|---|
| Current - Supply | 6.5 mA |
| Frequency | 1575.42 MHz |
| Gain (Max) | 22 dB |
| Gain (Min) | 17 dB |
| Mounting Type | Surface Mount |
| Noise Figure | 0.8 dB |
| P1dB | -18 dBm |
| Package / Case | 6-XFDFN Exposed Pad |
| Package Name | 6-TSON |
| RF Type | GPS |
| Test Frequency | 1.57542 GHz |
| Voltage - Supply (Maximum) | 3.3 V |
| Voltage - Supply (Minimum) | 1.6 V |
