2-2366509-4
ActiveTE Connectivity AMP Connectors

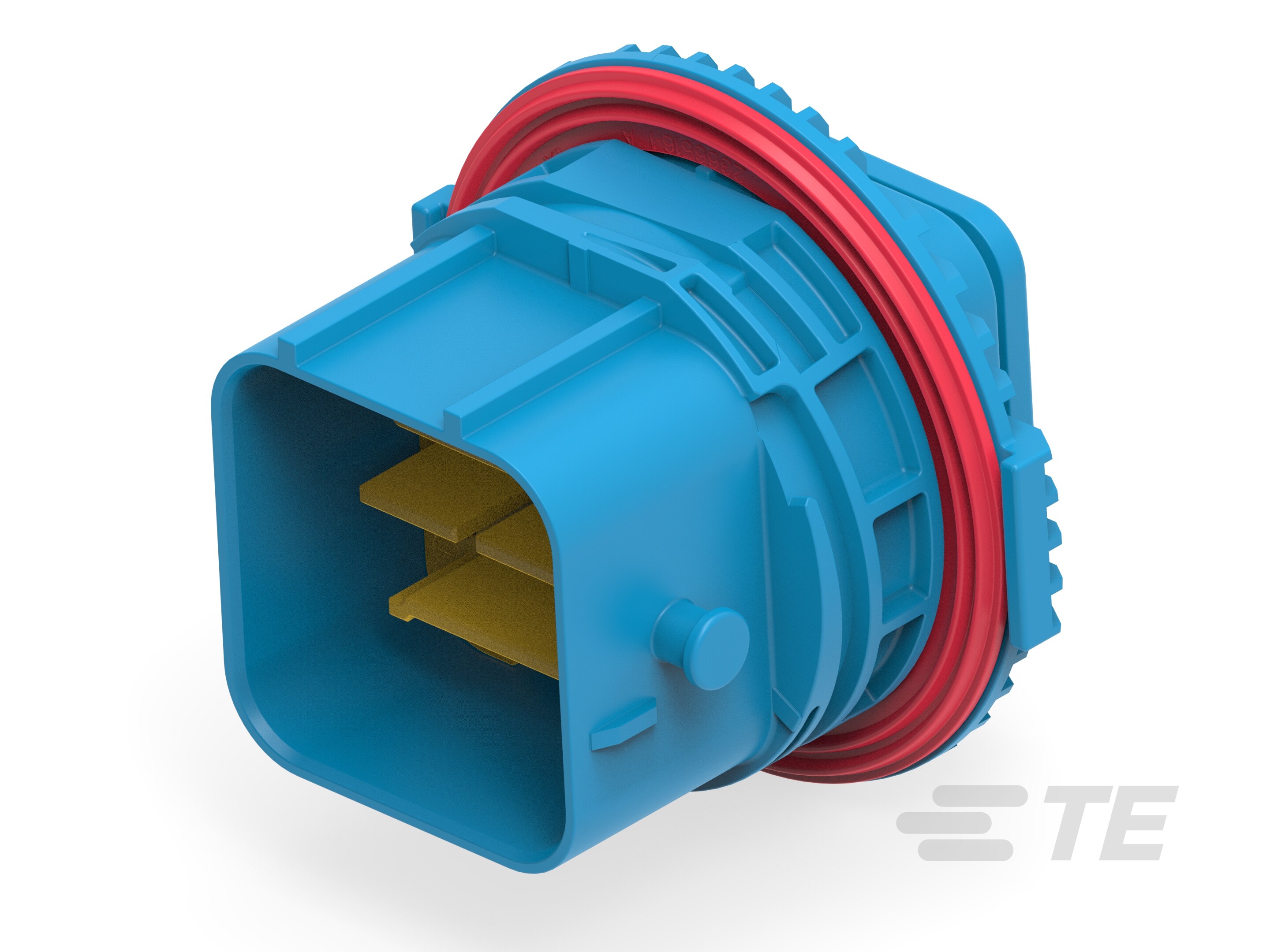

AUTOMOTIVE CONNECTORS 48POS,HYBRID,PIN HSG ASSY,SLD,COD D
2-2366509-4
ActiveTE Connectivity AMP Connectors
AUTOMOTIVE CONNECTORS 48POS,HYBRID,PIN HSG ASSY,SLD,COD D
Description
General part information
DEUTSCH NTSEAL Series
48 Position Housing, Housing for Male Terminals, Wire-to-Wire, 3.5 mm [.138 in] Centerline, Sealable, Blue, Wire & Cable, Power, DEUTSCH NTSEAL
Technical Specifications
Parameters and characteristics for this part
| Specification | 2-2366509-4 |
|---|---|
| Color | Blue |
| Connector Type | Receptacle |
| Contact Termination | Crimp |
| Contact Type | Tab |
| Fastening Type | Locking Ramp |
| Features | Sealed, Terminal Position Assurance (TPA) |
| Insulation Material | Polybutylene Terephthalate (PBT), Glass Filled |
| Mounting Type | Panel Mount |
| Note | Contacts Not Included |
| Number of Positions | 48 |
| Number of Rows | 6 |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -40 °C |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
