ActiveTE Connectivity AMP Connectors

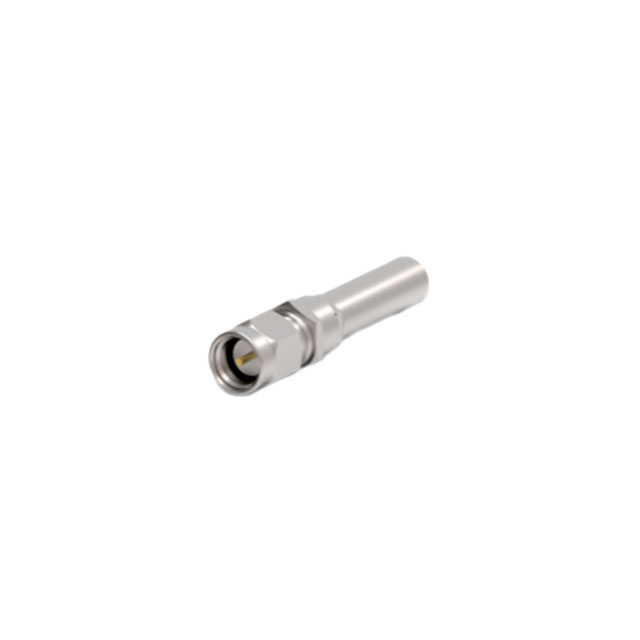

CONN SMA PLUG STR 50 OHM SOLDER
Deep-Dive with AI
Search across all available documentation for this part.
1051665-1
ActiveTE Connectivity AMP Connectors
CONN SMA PLUG STR 50 OHM SOLDER
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 1051665-1 | 1051 Series |
|---|---|---|
| Body Finish | - | Gold |
| Body Material | Stainless Steel | Stainless Steel |
| Cable Group | RG-174 | RG-174, 188, 316, 187, 179, RG-188, RG-142, RG-55, RG-405 (.085" Semi Rigid) |
| Cable Group | - | 142 - 400 |
| Center Contact Material | Brass | Beryllium Copper, Brass |
| Center Contact Plating | Gold | Gold |
| Connector Style | SMA | SMA |
| Connector Type | Male Pin, Plug | Female Socket, Jack, Male Pin, Plug |
| Contact Termination | Solder | Solder, Push On |
| Dielectric Material | Polytetrafluoroethylene (PTFE) | Polytetrafluoroethylene (PTFE) |
| Frequency - Max [Max] | 12.4 GHz | 12 - 18 GHz |
| Housing Color | Silver | Gold, Silver |
| Impedance | 50 Ohms | 50 Ohms |
| Includes | - | 1 Nut, 1 Heat Shrink, 1 Ferrule, 1 Contact, 1 Connector, 1 Lockwasher, 1 Sleeve, 1 End Cap |
| Mating Cycles | 500 | 500 |
| Mounting Feature | - | Bulkhead - Front Side Nut, Flange |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line), Right Angle |
| Number of Ports | 1 | 1 |
| Operating Temperature [Max] | 165 °C | 105 - 165 °C |
| Operating Temperature [Min] | -65 ░C | -65 ░C |
| Shield Termination | Crimp | Solder, Crimp |
| Voltage Rating | 250 VDC | 250 - 500 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
1051 Series
CONN SMA JACK STR 50 OHM SOLDER
| Part | Body Finish | Frequency - Max [Max] | Dielectric Material | Mounting Feature | Housing Color | Includes | Cable Group | Voltage Rating | Body Material | Impedance | Shield Termination | Operating Temperature [Min] | Operating Temperature [Max] | Mating Cycles | Connector Type | Connector Style | Center Contact Material | Contact Termination | Number of Ports | Center Contact Plating | Mounting Type | Cable Group |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 1051942-1 | Gold | 12.4 GHz | Polytetrafluoroethylene (PTFE) | Bulkhead - Front Side Nut | Gold | 1 Connector, 1 Contact, 1 Ferrule, 1 Heat Shrink, 1 Lockwasher, 1 Nut | 179, 187, 188, 316, RG-174 | 250 VDC | Stainless Steel | 50 Ohms | Solder | -65 ░C | 165 °C | 500 | Female Socket, Jack | SMA | Beryllium Copper | Solder | 1 | Gold | ||
TE Connectivity AMP Connectors 1051655-1 | 12.4 GHz | Polytetrafluoroethylene (PTFE) | Silver | 1 Connector, 1 Contact, 1 Heat Shrink, 1 Sleeve | RG-188 | 250 VDC | Stainless Steel | 50 Ohms | Crimp | -65 ░C | 165 °C | 500 | Male Pin, Plug | SMA | Beryllium Copper | Solder | 1 | Gold | Free Hanging (In-Line) | |||
TE Connectivity AMP Connectors 1051638-1 | Gold | 12.4 GHz | Polytetrafluoroethylene (PTFE) | Gold | 1 Connector, 1 Contact, 1 Heat Shrink, 1 Sleeve | RG-142 | 335 V | Stainless Steel | 50 Ohms | Solder | -65 ░C | 165 °C | 500 | Male Pin, Plug | SMA | Beryllium Copper | Solder | 1 | Gold | Free Hanging (In-Line) | ||
TE Connectivity AMP Connectors 1051661-1 | Polytetrafluoroethylene (PTFE) | Silver | RG-55 | 335 V | Stainless Steel | 50 Ohms | Crimp | 500 | Male Pin, Plug | SMA | Beryllium Copper | Solder | 1 | Gold | Free Hanging (In-Line) | 142, 223, 400 | ||||||
TE Connectivity AMP Connectors 1051113-1 | Gold | 18 GHz | Polytetrafluoroethylene (PTFE) | Gold | 1 Connector, 1 End Cap | RG-405 (.085" Semi Rigid) | 335 V | Stainless Steel | 50 Ohms | Solder | -65 ░C | 165 °C | 500 | Male Pin, Plug | SMA | Beryllium Copper | Solder | 1 | Gold | Free Hanging (In-Line), Right Angle | ||
TE Connectivity AMP Connectors 1051046-1 | Gold | 18 GHz | Polytetrafluoroethylene (PTFE) | Flange | Gold | RG-405 (.085" Semi Rigid) | 335 V | Stainless Steel | 50 Ohms | Solder | -65 ░C | 165 °C | 500 | Female Socket, Jack | SMA | Beryllium Copper | Solder | 1 | Gold | |||
TE Connectivity AMP Connectors 1051651-1 | 12.4 GHz | Polytetrafluoroethylene (PTFE) | Silver | 1 Connector, 1 Contact, 1 Heat Shrink, 1 Sleeve | RG-142 | 335 V | Stainless Steel | 50 Ohms | Crimp | -65 ░C | 165 °C | 500 | Male Pin, Plug | SMA | Beryllium Copper | Solder | 1 | Gold | Free Hanging (In-Line) | |||
TE Connectivity AMP Connectors 1051005-1 | 18 GHz | Polytetrafluoroethylene (PTFE) | Bulkhead - Front Side Nut | Silver | 1 Connector, 1 Contact, 1 Lockwasher, 1 Nut | 500 V | Stainless Steel | 50 Ohms | Crimp | -65 ░C | 105 ░C | 500 | Female Socket, Jack | SMA | Beryllium Copper | Push On | 1 | Gold | ||||
TE Connectivity AMP Connectors 1051644-1 | Gold | 12.4 GHz | Polytetrafluoroethylene (PTFE) | Gold | 1 Connector, 1 Contact, 1 Heat Shrink, 1 Sleeve | 188, 316, RG-174 | 250 VDC | Stainless Steel | 50 Ohms | Solder | -65 ░C | 165 °C | 500 | Male Pin, Plug | SMA | Beryllium Copper | Solder | 1 | Gold | Free Hanging (In-Line) | ||
TE Connectivity AMP Connectors 1051654-1 | Gold | 12.4 GHz | Polytetrafluoroethylene (PTFE) | Gold | 1 Connector, 1 Contact, 1 Heat Shrink, 1 Sleeve | RG-188 | 250 VDC | Stainless Steel | 50 Ohms | Crimp | -65 ░C | 165 °C | 500 | Male Pin, Plug | SMA | Beryllium Copper | Solder | 1 | Gold | Free Hanging (In-Line) | ||
TE Connectivity AMP Connectors 1051665-1 | 12.4 GHz | Polytetrafluoroethylene (PTFE) | Silver | RG-174 | 250 VDC | Stainless Steel | 50 Ohms | Crimp | -65 ░C | 165 °C | 500 | Male Pin, Plug | SMA | Brass | Solder | 1 | Gold | Free Hanging (In-Line) | ||||
TE Connectivity AMP Connectors 1051145-1 | 12.4 GHz | Polytetrafluoroethylene (PTFE) | Silver | Stainless Steel | 50 Ohms | Crimp | 500 | Male Pin, Plug | SMA | Beryllium Copper | Push On | 1 | Gold | Free Hanging (In-Line), Right Angle | ||||||||
TE Connectivity AMP Connectors 1051156-1 | Gold | 12 GHz | Polytetrafluoroethylene (PTFE) | Gold | 1 Connector, 1 End Cap | RG-405 (.085" Semi Rigid) | 335 V | Stainless Steel | 50 Ohms | Solder | -65 ░C | 125 °C | 500 | Male Pin, Plug | SMA | Beryllium Copper | Solder | 1 | Gold | Free Hanging (In-Line), Right Angle |
Description
General part information
1051 Series
SMA Connector Plug, Male Pin 50 Ohms Free Hanging (In-Line) Solder
