827603-1

Active

TE Connectivity AMP Connectors

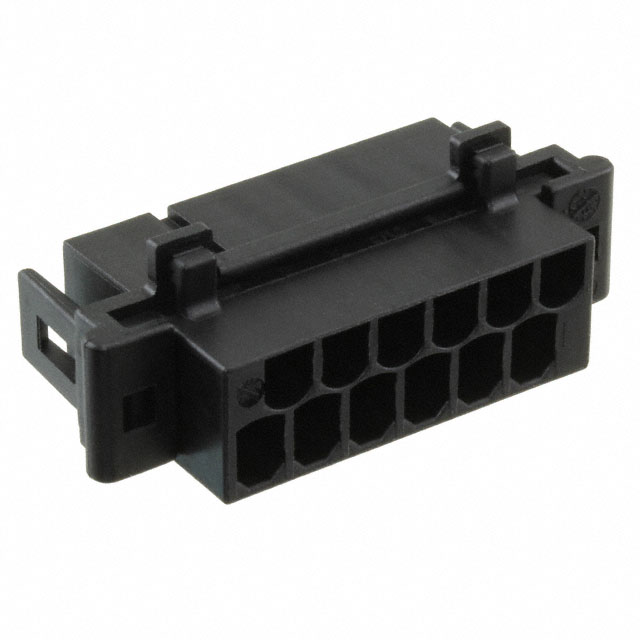

CONN RCPT HSG 12POS 5.00MM

Search across all available documentation for this part.

Active

TE Connectivity AMP Connectors

CONN RCPT HSG 12POS 5.00MM

Technical Specifications

Parameters and characteristics for this part

Specification	827603-1

Color	Black
Connector Type	Receptacle
Contact Termination	Crimp
Contact Type	Female Socket
Insulation Material	Polyamide (PA66), Nylon 6/6, Glass Filled
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	12
Number of Rows	2
Pitch [x]	5 mm
Pitch [x]	0.197 in
Row Spacing	5 mm
Row Spacing	0.197 in

CONN RCPT HSG 12POS 5.00MM

Part	Insulation Material	Contact Termination	Pitch [x]	Pitch [x]	Number of Rows	Color	Note	Number of Positions	Row Spacing	Row Spacing	Mounting Type	Connector Type	Contact Type
TE Connectivity AMP Connectors 827603-1	Polyamide (PA66), Nylon 6/6, Glass Filled	Crimp	5 mm	0.197 in	2	Black	Contacts Not Included	12	5 mm	0.197 in	Free Hanging (In-Line)	Receptacle	Female Socket

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

12 Rectangular Connectors - Housings Receptacle Black 0.197" (5.00mm)
