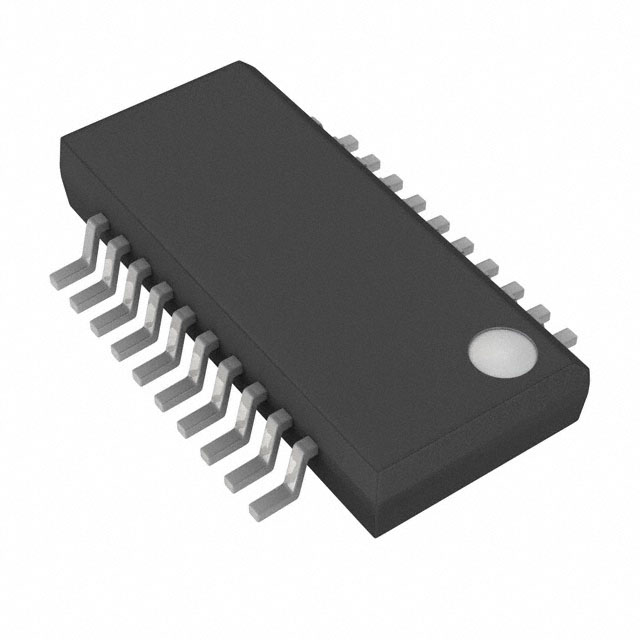

MAX9727EEP+

Active

Analog Devices Inc./Maxim Integrated

IC AMP CLASS AB QUAD 20QSOP

Search across all available documentation for this part.

Active

Analog Devices Inc./Maxim Integrated

IC AMP CLASS AB QUAD 20QSOP

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	MAX9727EEP+	MAX9727 Series

Features	Differential Inputs, Shutdown, Depop, Thermal Protection	Differential Inputs, Shutdown, Depop, Thermal Protection
Mounting Type	Surface Mount	Surface Mount
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-40 °C	-40 °C
Output Type	4-Channel (Quad)	4-Channel (Quad)
Package / Case	20-SSOP	20-SSOP
Package / Case [custom]	0.154 in	0.154 in
Package / Case [custom]	3.9 mm	3.9 mm
Supplier Device Package	20-QSOP	20-QSOP
Type	Class AB	Class AB
Voltage - Supply [Max]	5.5 V	5.5 V
Voltage - Supply [Min]	2.7 V	2.7 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

IC AMP CLASS AB QUAD 20QSOP

Part	Features	Operating Temperature [Max]	Operating Temperature [Min]	Type	Output Type	Mounting Type	Voltage - Supply [Min]	Voltage - Supply [Max]	Supplier Device Package	Package / Case [custom]	Package / Case	Package / Case [custom]
Analog Devices Inc./Maxim Integrated MAX9727EEP+T	Depop, Differential Inputs, Shutdown, Thermal Protection	85 °C	-40 °C	Class AB	4-Channel (Quad)	Surface Mount	2.7 V	5.5 V	20-QSOP	0.154 in	20-SSOP	3.9 mm
Analog Devices Inc./Maxim Integrated MAX9727EEP+	Depop, Differential Inputs, Shutdown, Thermal Protection	85 °C	-40 °C	Class AB	4-Channel (Quad)	Surface Mount	2.7 V	5.5 V	20-QSOP	0.154 in	20-SSOP	3.9 mm

General part information

Amplifier IC 4-Channel (Quad) Class AB 20-QSOP
