629W21W1140-2N4

Active

EDAC Inc.

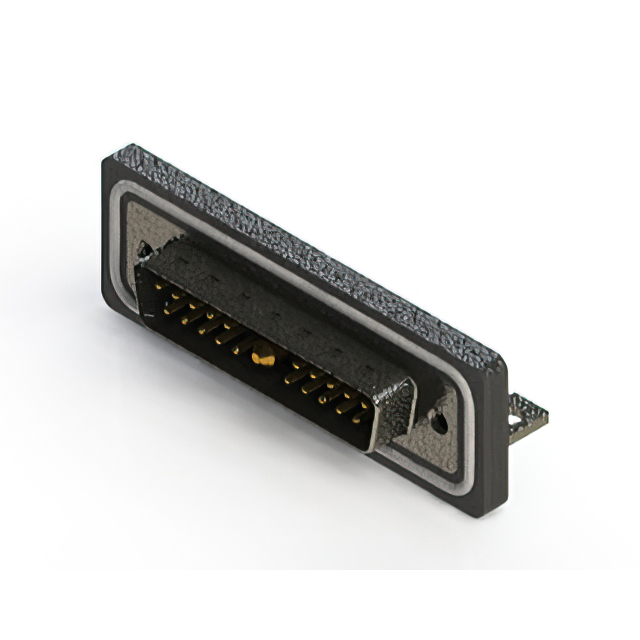

CONN D-SUB PLUG 21POS R/A SLDR

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

629W21W1140-2N4

Active

EDAC Inc.

CONN D-SUB PLUG 21POS R/A SLDR

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	629W21W1140-2N4

Color	Black
Connector Style	D-Sub, Combo
Connector Type	Plug, Male Pins
Contact Finish	Gold
Contact Finish Thickness	0.127 µm
Contact Finish Thickness	5 µin
Contact Material	Copper Alloy
Contact Type	Signal and Power
Current Rating (Amps)	5 A, 20 A
Dielectric Material	Polybutylene Terephthalate (PBT), Glass Filled
Features	Grounding Indents, Mounting Brackets, Shielded
Flange Feature	Housing/Shell (4-40)
Ingress Protection	IP67 - Dust Tight, Waterproof
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle, Panel Mount
Number of Positions [custom]	20
Number of Positions [custom]	21
Number of Positions [custom]	1
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Shell Material, Finish	Nickel Plated, Steel
Shell Size, Connector Layout	3 (DB, B) - 21W1
Termination	Solder
Voltage Rating	125 VDC

629W21W Series

Part	Color	Contact Finish Thickness	Current Rating (Amps)	Material Flammability Rating	Connector Type	Features	Ingress Protection	Mounting Type	Shell Material, Finish	Contact Material	Contact Type	Connector Style	Flange Feature	Number of Positions [custom]	Number of Positions [custom]	Number of Positions [custom]	Dielectric Material	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish	Voltage Rating	Shell Size, Connector Layout	Number of Rows	Termination	Contact Finish Thickness	Contact Finish Thickness	Current Rating (Amps)
EDAC Inc. 629W21W1240-3NB	Black	Flash	5 A 30 A	UL94 V-0	Male Pins Plug	Board Lock Filter Grounding Indents Mounting Brackets Shielded	IP67 - Dust Tight Waterproof	Panel Mount Right Angle Through Hole	Nickel Plated Steel	Copper Alloy	Signal and Power	Combo D-Sub	Housing/Shell (M3)	20	21	1	Polybutylene Terephthalate (PBT) Glass Filled	-55 °C	125 °C	Gold	125 VDC	3 (DB B) - 21W1	2	Solder
EDAC Inc. 629W21W1140-2NB	Black		5 A 20 A	UL94 V-0	Male Pins Plug	Board Lock Filter Grounding Indents Mounting Brackets Shielded	IP67 - Dust Tight Waterproof	Panel Mount Right Angle Through Hole	Nickel Plated Steel	Copper Alloy	Signal and Power	Combo D-Sub	Housing/Shell (M3)	20	21	1	Polybutylene Terephthalate (PBT) Glass Filled	-55 °C	125 °C	Gold	125 VDC	3 (DB B) - 21W1	2	Solder	0.127 µm	5 µin
EDAC Inc. 629W21W1640-1N2	Black			UL94 V-0	Male Pins Plug	Grounding Indents Shielded	IP67 - Dust Tight Waterproof	Panel Mount Right Angle Through Hole	Nickel Plated Steel	Copper Alloy	Signal and Power	Combo D-Sub	Housing/Shell (4-40)	20	21	1	Polybutylene Terephthalate (PBT) Glass Filled	-55 °C	125 °C	Gold	125 VDC	3 (DB B) - 21W1	2	Solder	0.76 Ám	30 Áin	10A 5A
EDAC Inc. 629W21W1140-2N4	Black		5 A 20 A	UL94 V-0	Male Pins Plug	Grounding Indents Mounting Brackets Shielded	IP67 - Dust Tight Waterproof	Panel Mount Right Angle Through Hole	Nickel Plated Steel	Copper Alloy	Signal and Power	Combo D-Sub	Housing/Shell (4-40)	20	21	1	Polybutylene Terephthalate (PBT) Glass Filled	-55 °C	125 °C	Gold	125 VDC	3 (DB B) - 21W1	2	Solder	0.127 µm	5 µin
EDAC Inc. 629W21W1140-4N3	Black		5 A 40 A	UL94 V-0	Male Pins Plug	Board Lock Grounding Indents Mounting Brackets Shielded	IP67 - Dust Tight Waterproof	Panel Mount Right Angle Through Hole	Nickel Plated Steel	Copper Alloy	Signal and Power	Combo D-Sub	Housing/Shell (4-40)	20	21	1	Polybutylene Terephthalate (PBT) Glass Filled	-55 °C	125 °C	Gold	125 VDC	3 (DB B) - 21W1	2	Solder	0.127 µm	5 µin
EDAC Inc. 629W21W1340-4NB	Black		5 A 40 A	UL94 V-0	Male Pins Plug	Board Lock Filter Grounding Indents Mounting Brackets Shielded	IP67 - Dust Tight Waterproof	Panel Mount Right Angle Through Hole	Nickel Plated Steel	Copper Alloy	Signal and Power	Combo D-Sub	Housing/Shell (M3)	20	21	1	Polybutylene Terephthalate (PBT) Glass Filled	-55 °C	125 °C	Gold	125 VDC	3 (DB B) - 21W1	2	Solder	0.38 µm	15 µin
EDAC Inc. 629W21W1240-4N3	Black	Flash	5 A 40 A	UL94 V-0	Male Pins Plug	Board Lock Grounding Indents Mounting Brackets Shielded	IP67 - Dust Tight Waterproof	Panel Mount Right Angle Through Hole	Nickel Plated Steel	Copper Alloy	Signal and Power	Combo D-Sub	Housing/Shell (4-40)	20	21	1	Polybutylene Terephthalate (PBT) Glass Filled	-55 °C	125 °C	Gold	125 VDC	3 (DB B) - 21W1	2	Solder
EDAC Inc. 629W21W1340-3N4	Black		5 A 30 A	UL94 V-0	Male Pins Plug	Grounding Indents Mounting Brackets Shielded	IP67 - Dust Tight Waterproof	Panel Mount Right Angle Through Hole	Nickel Plated Steel	Copper Alloy	Signal and Power	Combo D-Sub	Housing/Shell (4-40)	20	21	1	Polybutylene Terephthalate (PBT) Glass Filled	-55 °C	125 °C	Gold	125 VDC	3 (DB B) - 21W1	2	Solder	0.38 µm	15 µin
EDAC Inc. 629W21W1340-3NA	Black		5 A 30 A	UL94 V-0	Male Pins Plug	Grounding Indents Shielded	IP67 - Dust Tight Waterproof	Panel Mount Right Angle Through Hole	Nickel Plated Steel	Copper Alloy	Signal and Power	Combo D-Sub	Housing/Shell (M3)	20	21	1	Polybutylene Terephthalate (PBT) Glass Filled	-55 °C	125 °C	Gold	125 VDC	3 (DB B) - 21W1	2	Solder	0.38 µm	15 µin
EDAC Inc. 629W21W1140-3NB	Black		5 A 30 A	UL94 V-0	Male Pins Plug	Board Lock Filter Grounding Indents Mounting Brackets Shielded	IP67 - Dust Tight Waterproof	Panel Mount Right Angle Through Hole	Nickel Plated Steel	Copper Alloy	Signal and Power	Combo D-Sub	Housing/Shell (M3)	20	21	1	Polybutylene Terephthalate (PBT) Glass Filled	-55 °C	125 °C	Gold	125 VDC	3 (DB B) - 21W1	2	Solder	0.127 µm	5 µin

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	400	$ 18.06

Description

General part information

629W21W Series

21 (20 + 1 Power) Position D-Sub, Combo Plug, Male Pins Connector
