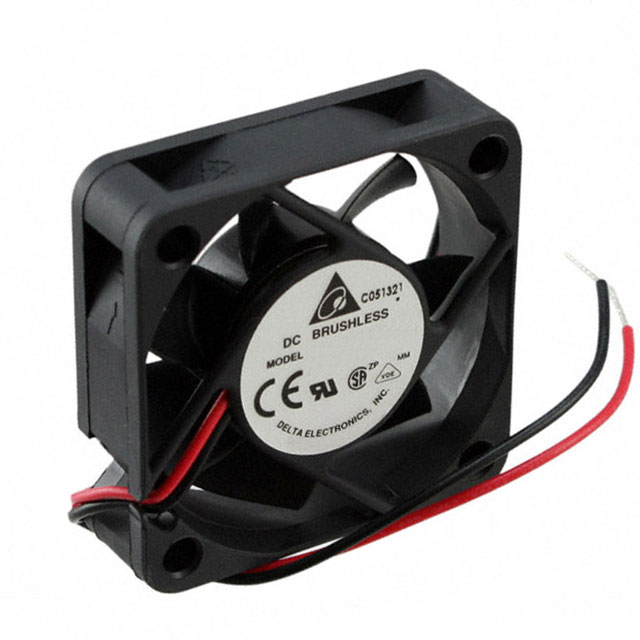

AFB0512HHB

Active

Delta Electronics

DC FAN AXIAL BALL BEARING 12V 7V TO 13.8V 16.24CFM 36DB 50 X 50 X 15MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Fans VDE Cert +2

AFB0512HHB

Active

Delta Electronics

DC FAN AXIAL BALL BEARING 12V 7V TO 13.8V 16.24CFM 36DB 50 X 50 X 15MM

Deep-Dive with AI

DocumentsDatasheet Fans VDE Cert +2

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 13.80
		10	$ 12.90
		25	$ 11.70
		50	$ 10.80
		100	$ 9.45
		336	$ 8.85
		672	$ 8.25

Description

General part information

AFB0512 Series

Fan Tubeaxial 12VDC Square - 50mm L x 50mm H Ball 16.2 CFM (0.454m³/min) 2 Wire Leads

Documents

Technical documentation and resources

Datasheet

Fans VDE Cert

Fans, Electric - Component UL Cert

Fans, Blowers CSA Cert

Related Document

Specification	AFB0512HHB	AFB0512 Series

Air Flow	16.2 CFM	9.9 - 20.3 CFM
Air Flow	0.454 m³/min	0.277 - 0.568 mł/min
Approval Agency	UL, CE, VDE, CSA	UL, CE, VDE, CSA
Bearing Type	Ball	Ball
Current Rating (Amps)	-	0.09 - 140 mA
Fan Type	Tubeaxial	Tubeaxial
Features	-	Locked Rotor Protection, PWM Control, Speed Sensor (Tach), Locked Rotor Sensor
Ingress Protection	-	IP55 - Dust Protected, Water Resistant
Lifetime @ Temp.	70000 Hrs	70000 Hrs
Material - Blade	Plastic	Plastic
Material - Frame	Plastic	Plastic
Noise	36 dB	24 - 40.5 dB
Operating Temperature [Max]	70 °C	70 °C
Operating Temperature [Max]	70 °C	70 °C
Operating Temperature [Min]	-10 °C	-10 °C
Operating Temperature [Min]	-10 °C	-10 °C
Power (Watts)	1.56 W	1.08 - 840 mW
RPM	6400 RPM	4000 - 7000 RPM
Size / Dimension [x]	50 mm	50 mm
Size / Dimension [z]	50 mm	50 mm
Static Pressure	0.315 in H2O	0.095 - 0.315 in H2O
Static Pressure	78.5 Pa	23.7 - 78.5 Pa
Termination	2 Wire Leads	2 Wire Leads, 4 Wire Leads, 3 Wire Leads
Voltage - Rated	12 VDC	12 VDC
Voltage Range [Max]	13.8 VDC	13.2 - 13.8 VDC
Voltage Range [Min]	7 V	5 - 10.8 V
Weight	0.071 lb	0.045 - 0.085 lb
Weight	32.21 g	20.41 - 38.56 g
Width	-	20 mm
Width [x]	15 mm	15 mm

Part

Material - Frame

Approval Agency

Fan Type

Size / Dimension [z]

Size / Dimension [x]

Static Pressure

Voltage - Rated

RPM

Voltage Range [Min]

Voltage Range [Max]

Noise

Bearing Type

Operating Temperature [Max]

Operating Temperature [Min]

Current Rating (Amps)

Termination

Air Flow

Weight

Material - Blade

Power (Watts)

Lifetime @ Temp.

Width [y]

Features

Width [x]

Ingress Protection

Delta Electronics

AFB0512MD

Plastic

CE, CSA, UL, VDE

Tubeaxial

50 mm

0.137 in H2O

34 Pa

12 VDC

4800 RPM

7 V

13.8 VDC

28 dB

Ball

70 °C

-10 °C

70 mA

2 Wire Leads

0.375 mł/min

13.4 CFM

38.56 g

0.085 lb

Plastic

840 mW

70000 Hrs

20 mm

Delta Electronics

AFB0512HHD

Plastic

CE, CSA, UL, VDE

Tubeaxial

50 mm

0.254 in H2O

63.3 Pa

12 VDC

6400 RPM

7 V

13.8 VDC

37 dB

Ball

70 °C

-10 °C

140 mA

2 Wire Leads

0.512 m³/min

18.3 CFM

38.56 g

0.085 lb

Plastic

1.68 W

70000 Hrs

20 mm

Delta Electronics

AFB0512LD

Plastic

CE, CSA, UL, VDE

Tubeaxial

50 mm

0.095 in H2O

23.7 Pa

12 VDC

4000 RPM

7 V

13.8 VDC

25 dB(A)

Ball

70 °C

-10 °C

60 mA

2 Wire Leads

38.56 g

0.085 lb

Plastic

720 mW

70000 Hrs

20 mm

Delta Electronics

AFB0512HD

Plastic

CE, CSA, UL, VDE

Tubeaxial

50 mm

0.182 in H2O

45.3 Pa

12 VDC

5600 RPM

7 V

13.8 VDC

33 dB(A)

Ball

70 °C

-10 °C

100 mA

2 Wire Leads

0.442 m³/min

15.8 CFM

38.56 g

0.085 lb

Plastic

1.2 W

70000 Hrs

20 mm

Delta Electronics

AFB0512HB-TP41

Plastic

CE, CSA, UL, VDE

Tubeaxial

50 mm

0.23 in H2O

57.3 Pa

12 VDC

6300 RPM

10.8 VDC

13.2 VDC

34 dB(A)

Ball

70 °C

-10 °C

120 mA

4 Wire Leads

0.504 m³/min

18 CFM

20.41 g

0.045 lb

Plastic

1.44 W

70000 Hrs

Locked Rotor Protection, PWM Control, Speed Sensor (Tach)

15 mm

Delta Electronics

AFB0512LB-A

Plastic

CE, CSA, UL, VDE

Tubeaxial

50 mm

0.119 in H2O

29.6 Pa

12 VDC

4300 RPM

5 VDC

13.8 VDC

24 dB

Ball

0.09 A

2 Wire Leads

0.328 mł/min

11.7 CFM

20.41 g

0.045 lb

Plastic

1.08 W

15 mm

Delta Electronics

AFB0512HHD-R00

Plastic

CE, CSA, UL, VDE

Tubeaxial

50 mm

0.254 in H2O

63.3 Pa

12 VDC

6400 RPM

7 V

13.8 VDC

37 dB

Ball

70 °C

-10 °C

140 mA

3 Wire Leads

0.512 m³/min

18.3 CFM

38.56 g

0.085 lb

Plastic

1.68 W

70000 Hrs

20 mm

Locked Rotor Sensor

Delta Electronics

AFB0512HHB-F00

Plastic

CE, CSA, UL, VDE

Tubeaxial

50 mm

0.315 in H2O

78.5 Pa

12 VDC

6400 RPM

7 V

13.8 VDC

36 dB

Ball

70 °C

-10 °C

3 Wire Leads

0.454 m³/min

16.2 CFM

32.21 g

0.071 lb

Plastic

1.56 W

70000 Hrs

Locked Rotor Protection, Speed Sensor (Tach)

15 mm

Delta Electronics

AFB0512HD-F00

Plastic

CE, CSA, UL, VDE

Tubeaxial

50 mm

0.182 in H2O

45.3 Pa

12 VDC

5600 RPM

7 V

13.8 VDC

33 dB(A)

Ball

70 °C

-10 °C

100 mA

3 Wire Leads

0.442 m³/min

15.8 CFM

38.56 g

0.085 lb

Plastic

1.2 W

70000 Hrs

20 mm

Locked Rotor Protection, Speed Sensor (Tach)

Delta Electronics

AFB0512VHD-F00

Plastic

CE, CSA, UL, VDE

Tubeaxial

50 mm

0.303 in H2O

75.5 Pa

12 VDC

7000 RPM

7 V

13.8 VDC

40.5 dB(A)

Ball

70 °C

-10 °C

3 Wire Leads

0.568 mł/min

20.3 CFM

38.56 g

0.085 lb

Plastic

1.92 W

70000 Hrs

20 mm

Locked Rotor Protection, Speed Sensor (Tach)

Part	Material - Frame	Approval Agency	Fan Type	Size / Dimension [z]	Size / Dimension [x]	Static Pressure	Static Pressure	Voltage - Rated	RPM	Voltage Range [Min]	Voltage Range [Max]	Noise	Bearing Type	Operating Temperature [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Min]	Current Rating (Amps)	Termination	Air Flow	Air Flow	Weight	Weight	Material - Blade	Power (Watts)	Lifetime @ Temp.	Width [y]	Features	Width [x]
Delta Electronics AFB0512MD	Plastic	CE, CSA, UL, VDE	Tubeaxial	50 mm	50 mm	0.137 in H2O	34 Pa	12 VDC	4800 RPM	7 V	13.8 VDC	28 dB	Ball	70 °C	70 °C	-10 °C	-10 °C	70 mA	2 Wire Leads	0.375 mł/min	13.4 CFM	38.56 g	0.085 lb	Plastic	840 mW	70000 Hrs	20 mm
Delta Electronics AFB0512HHD	Plastic	CE, CSA, UL, VDE	Tubeaxial	50 mm	50 mm	0.254 in H2O	63.3 Pa	12 VDC	6400 RPM	7 V	13.8 VDC	37 dB	Ball	70 °C	70 °C	-10 °C	-10 °C	140 mA	2 Wire Leads	0.512 m³/min	18.3 CFM	38.56 g	0.085 lb	Plastic	1.68 W	70000 Hrs	20 mm
Delta Electronics AFB0512LD	Plastic	CE, CSA, UL, VDE	Tubeaxial	50 mm	50 mm	0.095 in H2O	23.7 Pa	12 VDC	4000 RPM	7 V	13.8 VDC	25 dB(A)	Ball	70 °C	70 °C	-10 °C	-10 °C	60 mA	2 Wire Leads			38.56 g	0.085 lb	Plastic	720 mW	70000 Hrs	20 mm
Delta Electronics AFB0512HD	Plastic	CE, CSA, UL, VDE	Tubeaxial	50 mm	50 mm	0.182 in H2O	45.3 Pa	12 VDC	5600 RPM	7 V	13.8 VDC	33 dB(A)	Ball	70 °C	70 °C	-10 °C	-10 °C	100 mA	2 Wire Leads	0.442 m³/min	15.8 CFM	38.56 g	0.085 lb	Plastic	1.2 W	70000 Hrs	20 mm
Delta Electronics AFB0512HB-TP41	Plastic	CE, CSA, UL, VDE	Tubeaxial	50 mm	50 mm	0.23 in H2O	57.3 Pa	12 VDC	6300 RPM	10.8 VDC	13.2 VDC	34 dB(A)	Ball	70 °C	70 °C	-10 °C	-10 °C	120 mA	4 Wire Leads	0.504 m³/min	18 CFM	20.41 g	0.045 lb	Plastic	1.44 W	70000 Hrs		Locked Rotor Protection, PWM Control, Speed Sensor (Tach)	15 mm
Delta Electronics AFB0512LB-A	Plastic	CE, CSA, UL, VDE	Tubeaxial	50 mm	50 mm	0.119 in H2O	29.6 Pa	12 VDC	4300 RPM	5 VDC	13.8 VDC	24 dB	Ball					0.09 A	2 Wire Leads	0.328 mł/min	11.7 CFM	20.41 g	0.045 lb	Plastic	1.08 W				15 mm
Delta Electronics AFB0512HHD-R00	Plastic	CE, CSA, UL, VDE	Tubeaxial	50 mm	50 mm	0.254 in H2O	63.3 Pa	12 VDC	6400 RPM	7 V	13.8 VDC	37 dB	Ball	70 °C	70 °C	-10 °C	-10 °C	140 mA	3 Wire Leads	0.512 m³/min	18.3 CFM	38.56 g	0.085 lb	Plastic	1.68 W	70000 Hrs	20 mm	Locked Rotor Sensor
Delta Electronics AFB0512HHB-F00	Plastic	CE, CSA, UL, VDE	Tubeaxial	50 mm	50 mm	0.315 in H2O	78.5 Pa	12 VDC	6400 RPM	7 V	13.8 VDC	36 dB	Ball	70 °C	70 °C	-10 °C	-10 °C		3 Wire Leads	0.454 m³/min	16.2 CFM	32.21 g	0.071 lb	Plastic	1.56 W	70000 Hrs		Locked Rotor Protection, Speed Sensor (Tach)	15 mm
Delta Electronics AFB0512HD-F00	Plastic	CE, CSA, UL, VDE	Tubeaxial	50 mm	50 mm	0.182 in H2O	45.3 Pa	12 VDC	5600 RPM	7 V	13.8 VDC	33 dB(A)	Ball	70 °C	70 °C	-10 °C	-10 °C	100 mA	3 Wire Leads	0.442 m³/min	15.8 CFM	38.56 g	0.085 lb	Plastic	1.2 W	70000 Hrs	20 mm	Locked Rotor Protection, Speed Sensor (Tach)
Delta Electronics AFB0512VHD-F00	Plastic	CE, CSA, UL, VDE	Tubeaxial	50 mm	50 mm	0.303 in H2O	75.5 Pa	12 VDC	7000 RPM	7 V	13.8 VDC	40.5 dB(A)	Ball	70 °C	70 °C	-10 °C	-10 °C		3 Wire Leads	0.568 mł/min	20.3 CFM	38.56 g	0.085 lb	Plastic	1.92 W	70000 Hrs	20 mm	Locked Rotor Protection, Speed Sensor (Tach)
